by Miles Nicholson
AutoCAD Electrical can speed up the production of single-line diagrams (SLDs) by automating repetitive tasks and providing built‑in tools tailored for electrical design. Here’s an overview of how it helps:
- Symbol libraries with built in smart symbols to IEC, ANSI support (ARKANCE specific library functionality)
- Automated tagging & numbering minimising rework if devices/cables added/deleted etc
- Real‑time cross‑referencing
- Project-wide editing
- Built‑in wiring tools with intelligent placement, connections, etc
- Data-driven reports such as BOMs, cable schedules, and panel lists directly from the SLD data.
AutoCAD Electricals’ automation (symbol intelligence, tagging, cross-referencing, and reporting) removes much of the manual drafting and annotation work in producing SLDs. This speeds up initial creation and ensures consistency when projects change.

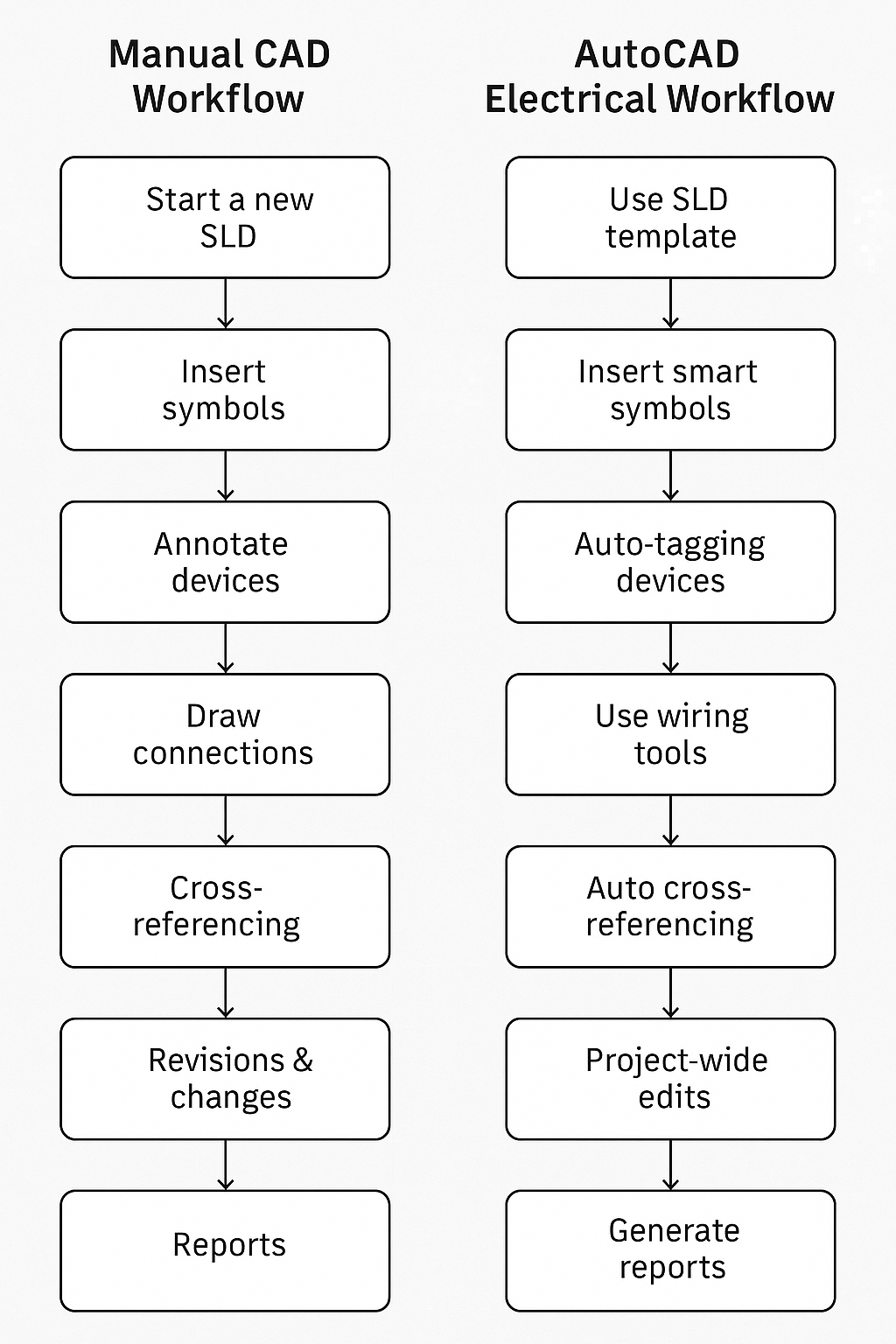

| Manual CAD vs. AutoCAD Electrical – SLD Workflow | |||
| Task | Manual CAD Workflow | AutoCAD Electrical Workflow | Time/Accuracy Impact |
| 1. Start a new SLD | Create a new blank drawing and manually set layers, title block, and scales. | Use pre‑configured SLD template with layers, title block, and settings already applied. | Saves ~10–15 min per drawing. |
| 2. Insert symbols | Manually draw breakers, disconnects, transformers, etc., or insert from generic block library (no intelligence). | Insert smart electrical symbols from built‑in IEC/ANSI libraries — automatically include tags, ratings, descriptions. | No need to redraw; reduces symbol errors. |
| 3. Annotate devices | Type tags and descriptions manually for each device. | Auto‑tagging and description entry once in the properties — updates everywhere it appears. | Prevents mismatched or duplicate tags. |
| 4. Draw connections | Draw lines or polylines for buses/wires; manually place connection dots; ensure correct layer and lineweight. | Use wire tools that automatically place connection points, maintain correct layers, and enforce wire naming rules. | Consistency maintained without manual checking. |
| 5. Cross‑referencing | If a breaker also appears in detailed schematics, manually type a reference note and update if design changes. | Auto‑generated cross‑references link SLD symbol to its schematic symbol; updates instantly if changed. | Eliminates retyping and missed updates. |
| 6. Revisions & changes | Edit each instance of the symbol, annotation, and reference individually across drawings. | Project‑wide edits — change once in the Project Manager and all instances update. | Drastically reduces revision time. |
| 7. Reports | Manually create BOMs, cable lists, and load schedules in Excel or Word. | Generate linked reports directly from drawing data — always in sync with design. | Avoids manual counting and transcription errors. |
| 8. Reuse designs | Copy/paste previous projects and edit each symbol and tag to match new requirements. | Save and reuse parametric templates for feeders, MCCs, or substations — all tags auto‑renumber. | Cuts repetitive drafting work. |
Result:
AutoCAD Electricals’ automation can cut SLD creation time by 40–60% for medium‑size projects while greatly improving consistency and reducing manual rework.
