When you create a point-to-point connector drawing and cross-referencing is displayed by the side of the connector, you can change this:
1. The following method only changes the individual component

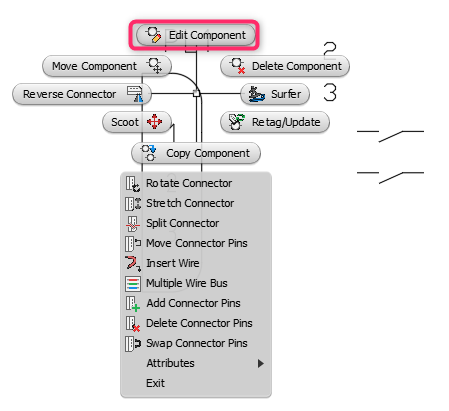

Right-click over the symbol > Edit Component
Tick
Select
Tick
Select
Select
2. The following method changes all components on the drawing
Select Schematic ribbon tab > Other Tools pane >
Select Cross-References tab
Tick
Select
Select Schematic ribbon tab > Edit Components pane > Component Cross-Reference
Select Active drawing (all)
Select
Select (if prompted to QSAVE the drawing)
Select to close the report
