By Connor Ferguson
Autodesk Fusion Lifecycle provides the ability to create customisable print views of records in workspaces. Administrators can add print views by finding the target workspace in the Workspace Manager and selecting either Print Views or Advanced Print Views. Print views allow you configure a generic table on a printed document, whilst Advanced Print Views allow you to fully customise the output using a html editor. Once a print view has been configured for a workspace, there will be a print icon that appears when an item has been selected. Once clicked, if you have multiple print views configured you can select the view you want to create. All data from all tabs of a record (Item Details, Bom, Workflow, Grid etc.) can be displayed on a print view.

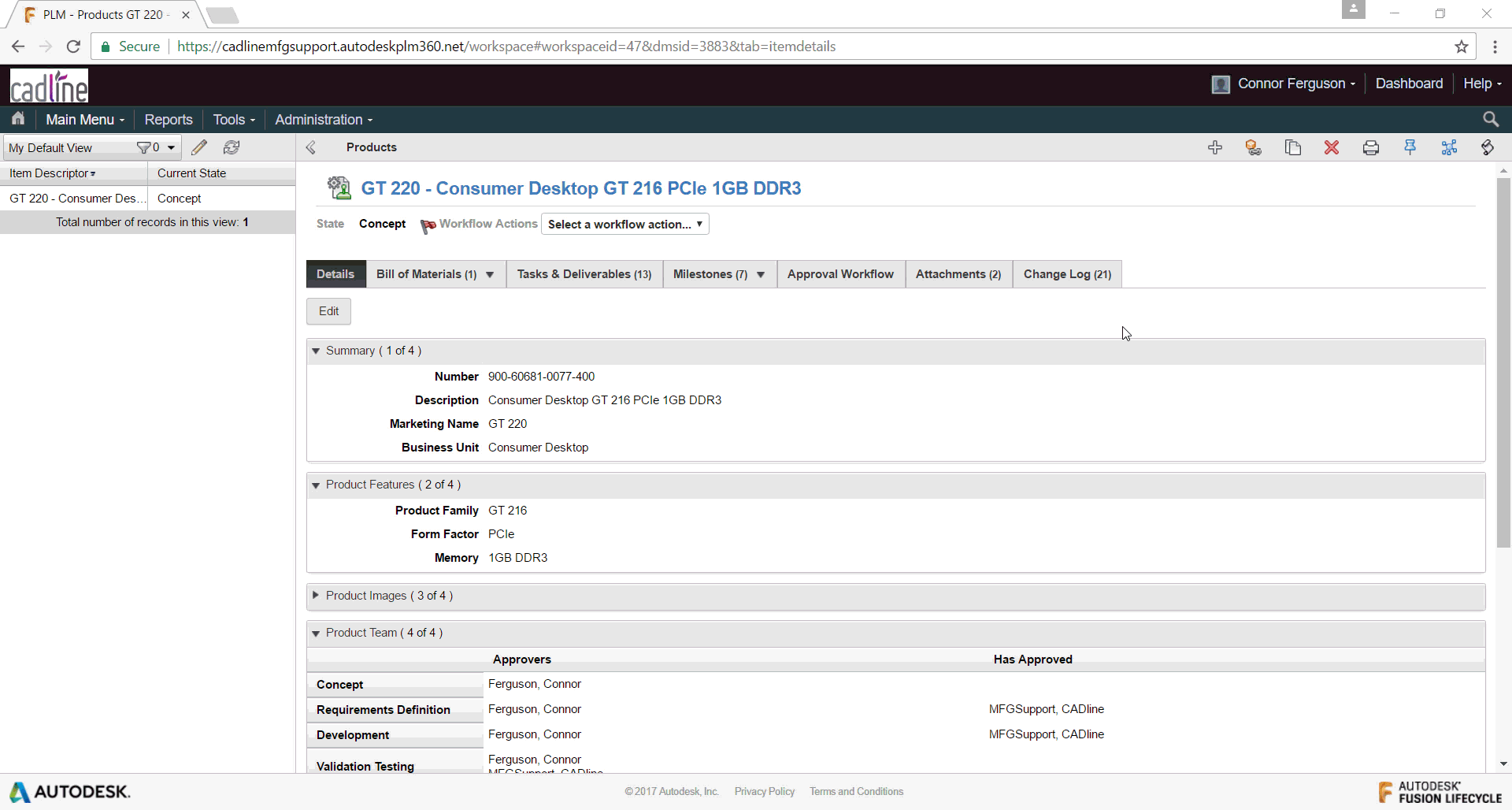

The below GIF shows the output of a ‘Cadline Report’ Advanced print view.
