By Kim Hyde

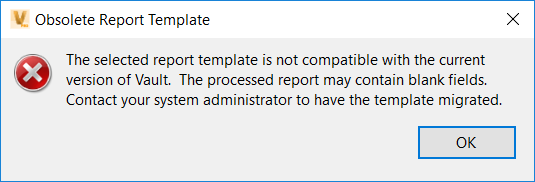

Users who have recently upgraded their Vault Professional to the latest 2019 version and have tried using a customised Vault Report Template created in a previous release have probably been frustrated by the following error message:
Issue
Basically, Autodesk has upgraded the version of Vault Report `rdlc’ files for the 2019 release. Although the out-of-the-box reports supplied with the latest release work fine, those created using a previous version will result with this error being displayed.
Solution
The following step-by-step guide provides an upgrade path to migrate any legacy rdlc Report Template.
Step 1

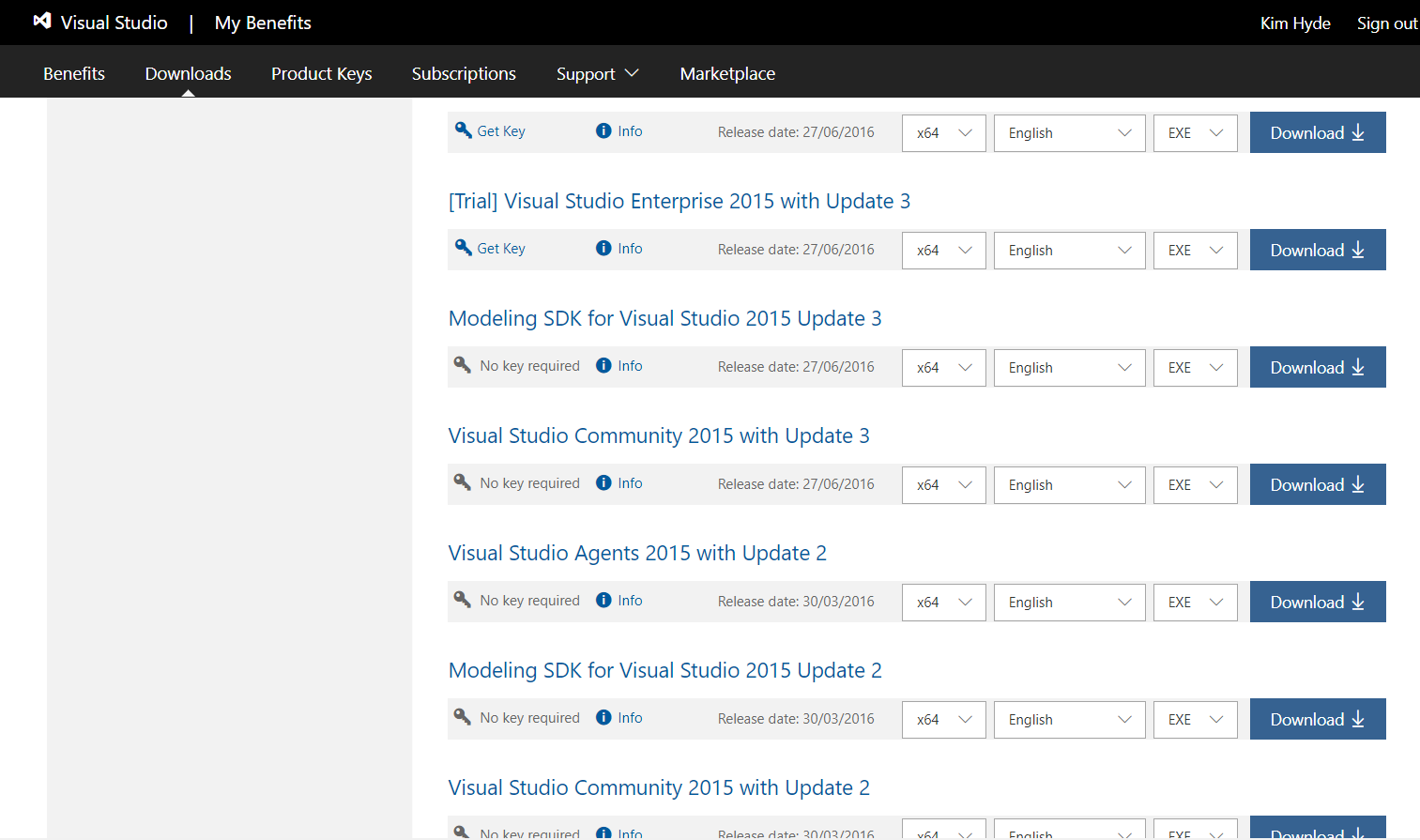

You will need to source, download and install Visual Studio 2015. I have provided a link below and highlighted the Visual Studio Community 2015 with Update 3 which worked fine for me!
https://my.visualstudio.com/Downloads?q=visual%20studio%202015&wt.mc_id=o~msft~vscom~older-downloads
The installation is straight forward, but please note this can take a while depending on the speed of your PC.

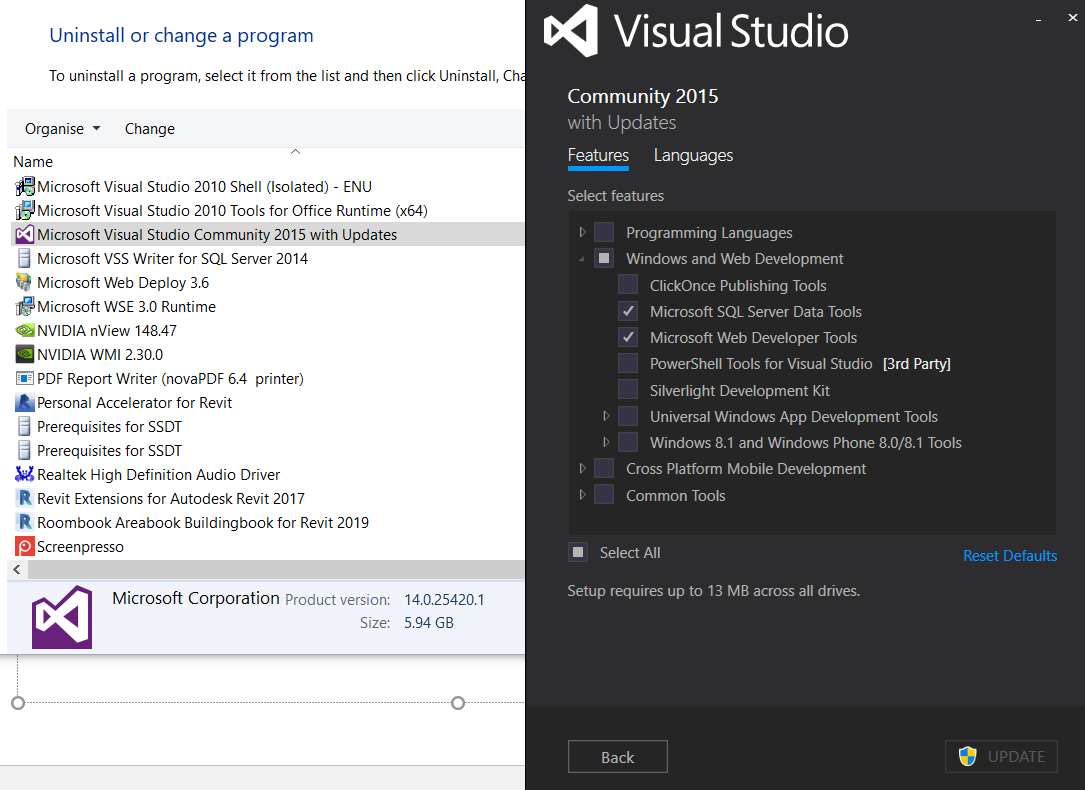

Once installed use the `Launch’ button to start the program, but then close again after the initial run so that the following additional tool can be added to the application via Control Panel > Programs and Features (Microsoft SQL Server Data Tools):
Step 2

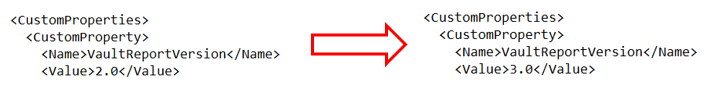

Using Notepad or Notepad ++, edit the legacy report rdlc file and change the report version from 2 to 3, then save and close the file (see below):
Step 3

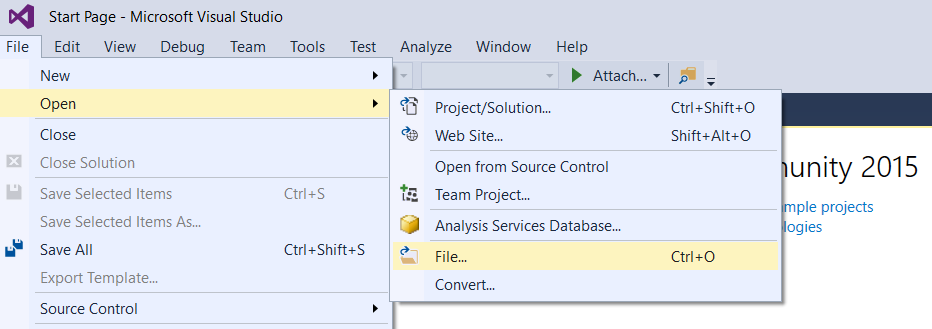

Start Visual Studio 2015 and open the rdlc file, then select OK to migrate the version:

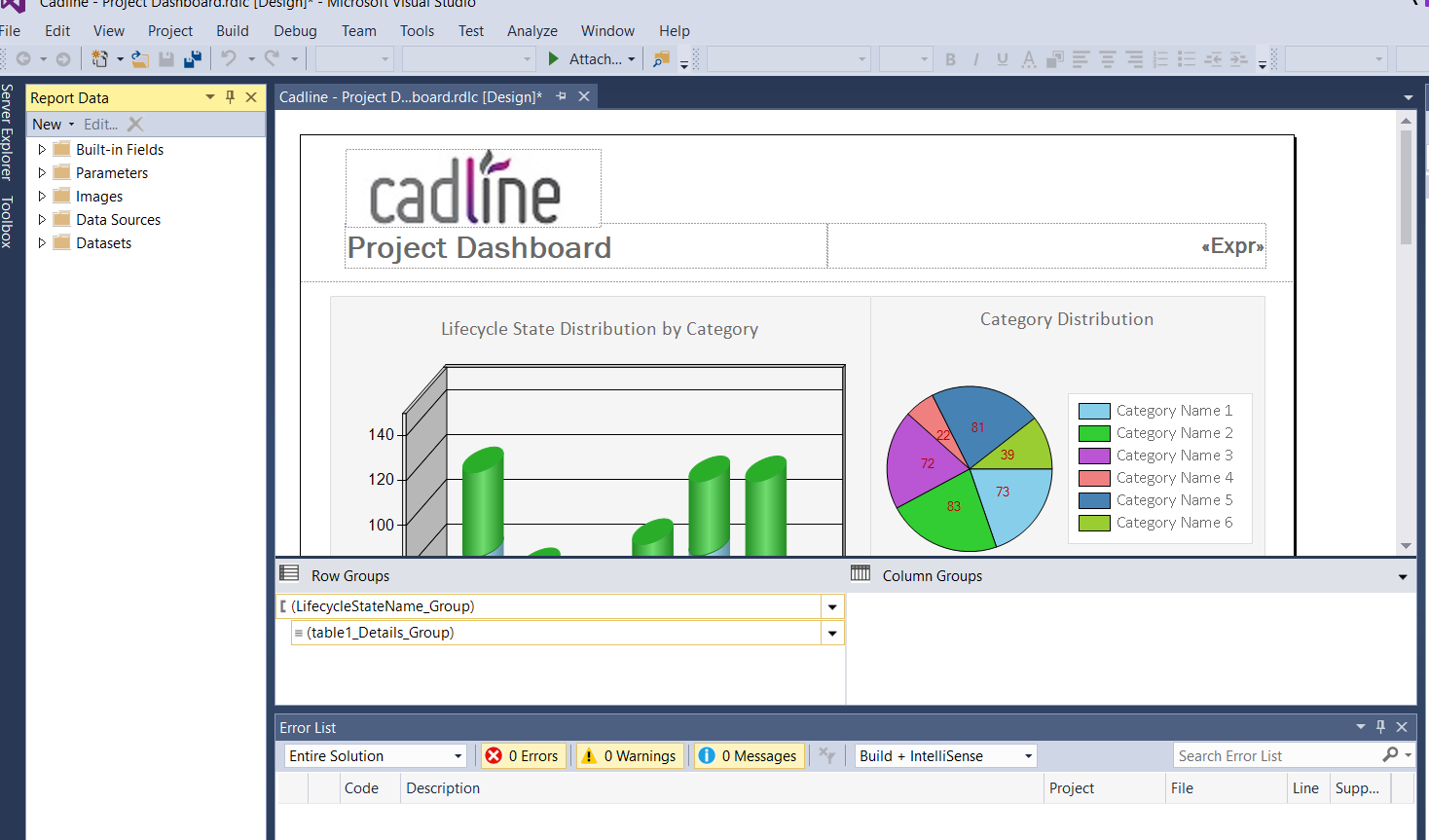

Save the file to complete the process.
The report should now work fine inVP2019.
Happy Vaulting!
