By Miles Nicholson
When your design is constantly changing, you can easily miss a source or destination arrow that is no longer linked. AutoCAD Electrical however, can easily report mis-matches across your project and the user can run a report that lists all the signal source and destinations used on the project drawing set. The exception report lists problem areas such as a destination signal with no source found or a source signal that does not tie to a destination. The report lists both source and destination arrows as well as standalone references.
Select Report ribbon tab > Schematic panel
Select
Choose the type of report you wish to display:
Select
Select ¤ View Exception Report
Select

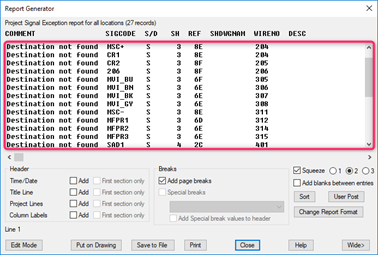

Problems are then listed:
