By Florentina Stirbu
Fusion 360 drawings can be exported to PDF, DWG or DXF (only the active sheet will get exported).

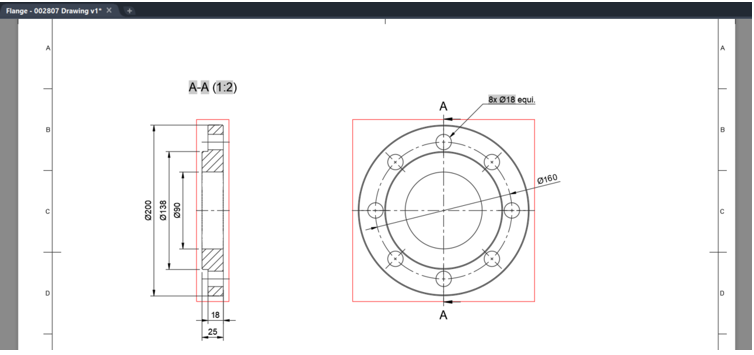

When exporting to DWG, it is not possible to configure the export. The result will use the base view scale and all data will be available in paper space only. Data will be converted as blocks.

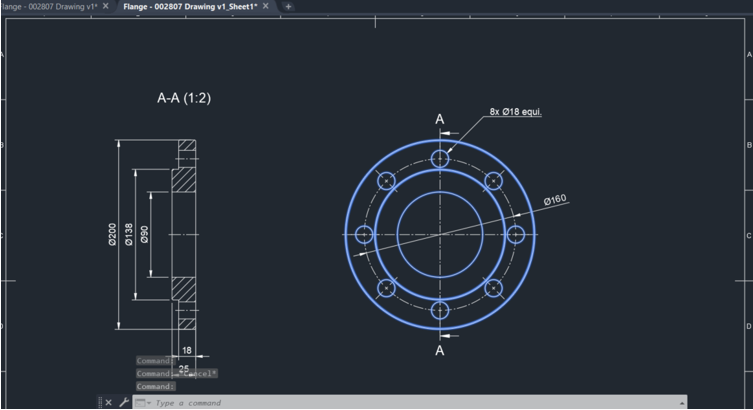

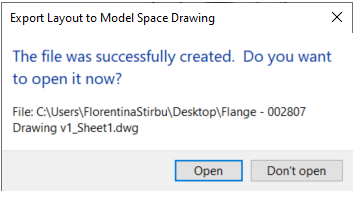

If it is needed to make further edits on the drawing, the EXPORTLAYOUT command can be used to export this data to a model space drawing. Once a filename and destination folder are selected, the export is being processed. When ready, a prompt will allow opening the new drawing. The result will be in the same scale as the original layout view.
The drawing can then be edited and, if necessary, blocks can be converted to individual elements using the EXPLODE command.
