Inventor part features can be controlled at a basic suppression level using parameters and the feature property.

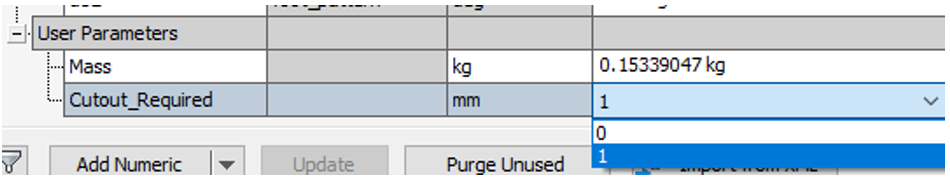

- Within the parameter dialogue create a parameter to control the feature suppression. Make the parameter a multi value list.

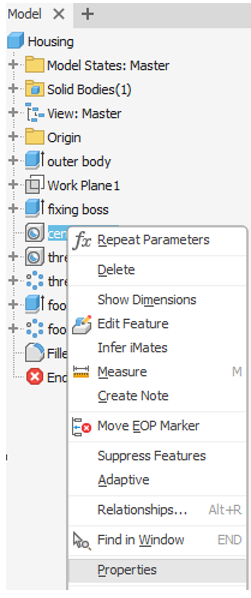

- Select the feature to be controlled in the model browser and right click -> properties.

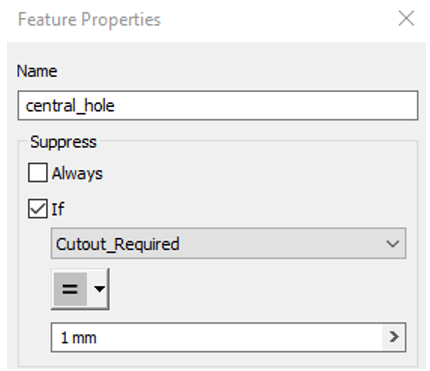

- Configure the dialogue to suppress the feature when the controlling parameter value is selected.

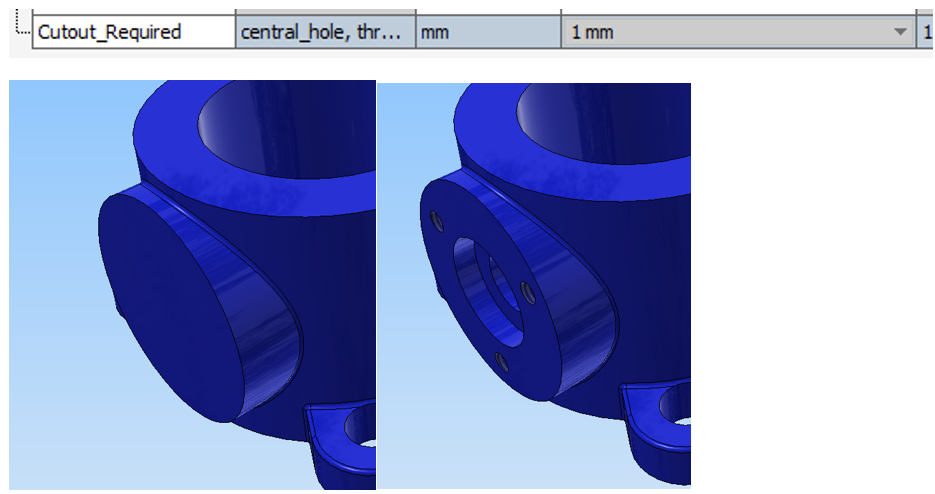

- Change the parameter value to observe the feature suppression.
- Several features can be controlled by the same parameter.
