By Martin Phelps

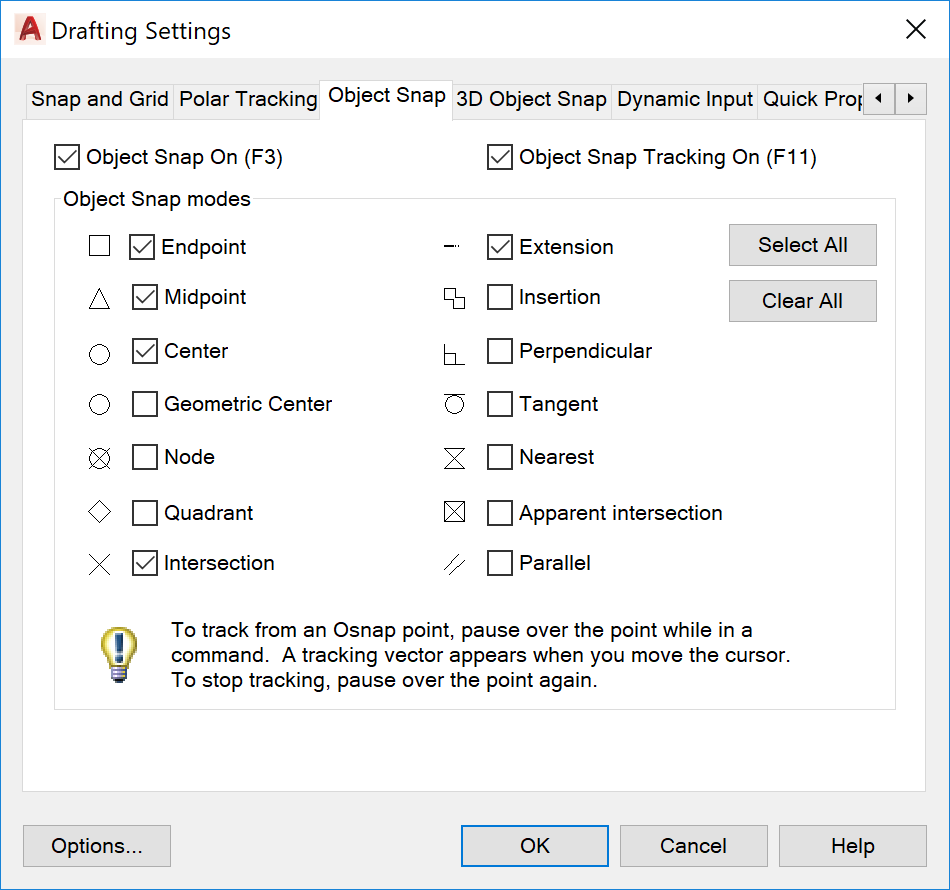

In previous releases of AutoCAD the “Drafting Settings” dialogue box was of a fixed size, so to moving to the “Quick Properties” and “Selection Cycling” tabs, required the use of the arrow button on the top right of the dialogue box as shown in Figure 1.
Figure 1.

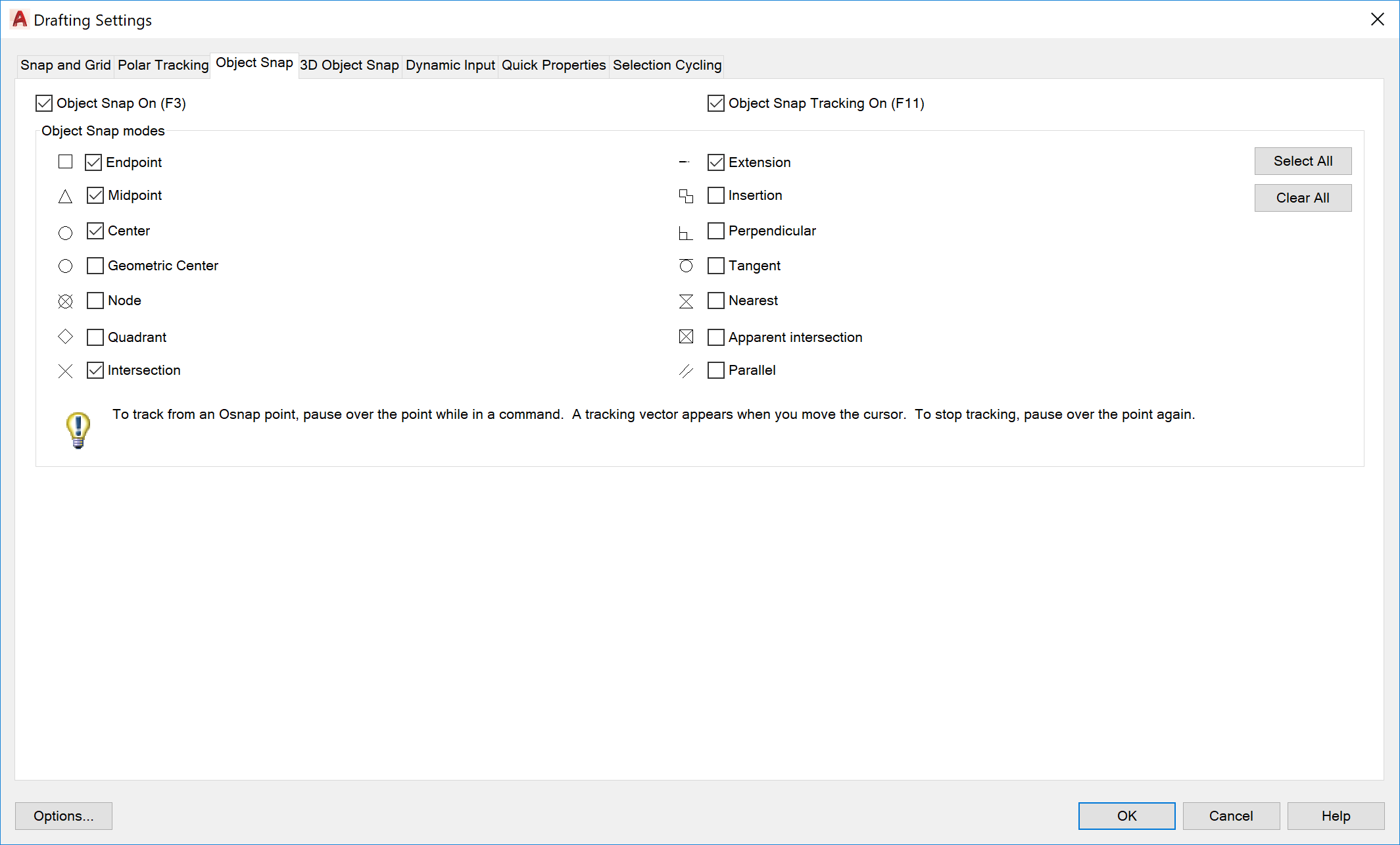

Now in 2018 the “Drafting Setting” dialogue box can be resized by dragging either the edges or the corners of the dialogue box, as shown in Figure 2.
Figure 2.
It’s only a very minor change, but it does now mean that all tabs and options are now displayed, and no need to scroll through the tabs using the arrow buttons.
