by Dennis Collin
AutoCAD has many out of the box ways of tidying up line corners, such as Trim, Extend, Fillet and Chamfer etc. However, with a bevelled corner there may be a need to create some additional lines for a section view or to aid with the positioning of dimensions.
The Complete Corner Add-in available from the Autodesk App store compliments these existing methods. Click on the Complete Corner command from the Add-in tab and the feature will draw an additional line to complete the corner, but leaves the original geometry intact!

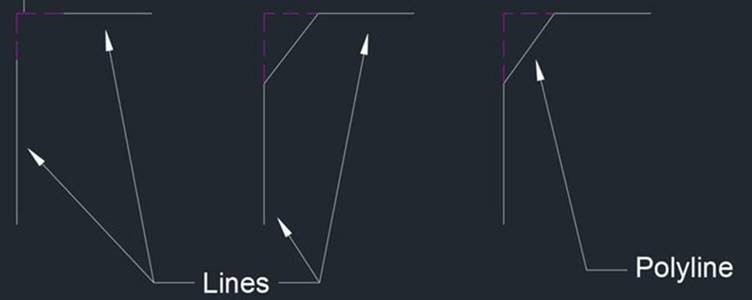

Fig. The App retains the geometry but adds lines denoting corners highlighted in magenta.

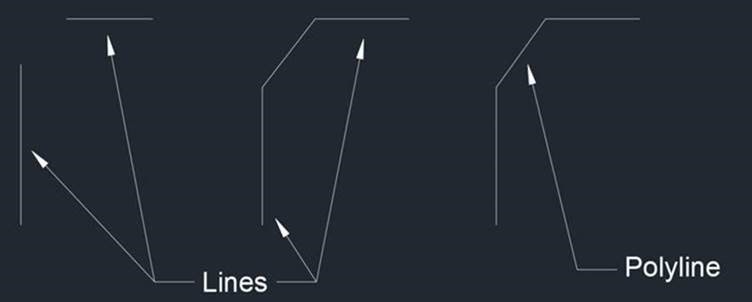

The Add-in works with either line or polyline objects or a mixture of both.
The link to this add-in can be found here:
https://apps.autodesk.com/ACD/en/Detail/Index?id=5577084268114955868&appLang=en&os=Win32_64
(Login required)
