By Andy Davis

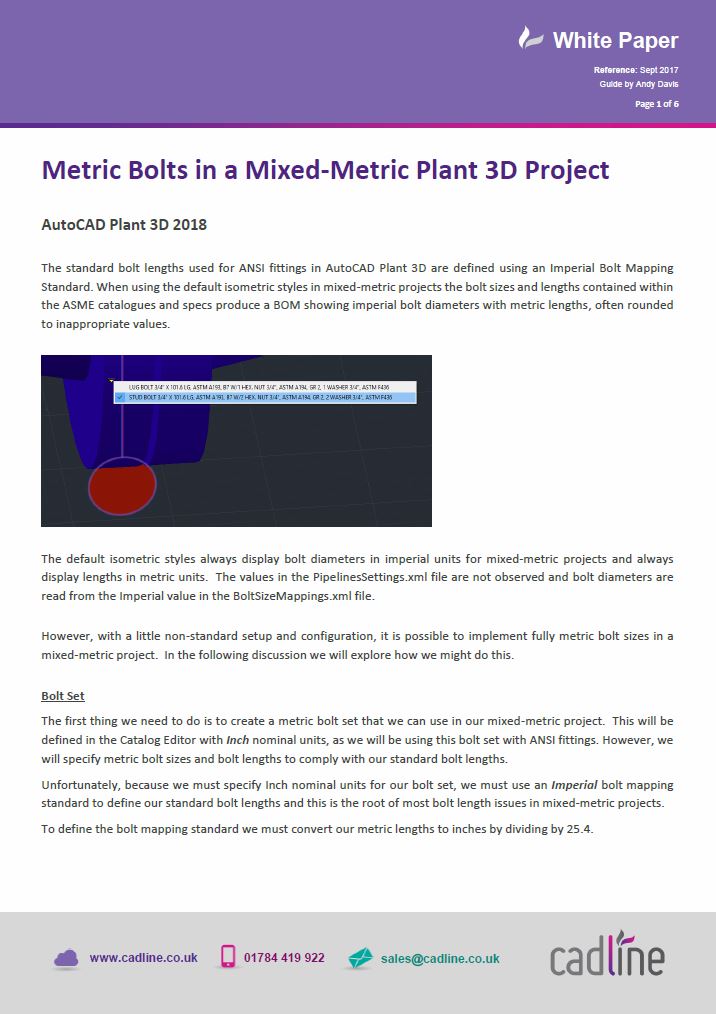

The standard bolt lengths used for ANSI fittings in AutoCAD Plant 3D are defined using an Imperial Bolt Mapping Standard. When using the default isometric styles in mixed-metric projects the bolt sizes and lengths contained within the ASME catalogues and specs produce a BOM showing imperial bolt diameters with metric lengths, often rounded to inappropriate values.
