A common request I often have in Revit is, the possibility of using a Curtain wall element as a Door or Window assembly type object.

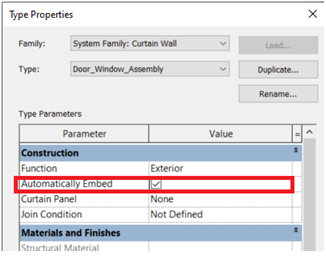

One method is to use the cut geometry option, but I think a tidier option is to modify the Curtain Wall family itself. Create a new curtain wall type and rename it to Door_Window Assembly or similar. Edit type properties and tick the Automatically Embed Option.
Now when placing a curtain wall over a masonry wall type, the curtain wall element will behave like a door or window element.
For flexibility I leave the vertical and horizontal grid as undefine which means grids can be created in a bespoke manner to suit specific projects. Door and Window curtain panels can be used as infills and if categorised correctly will show in their respective schedules.
