By Miles Nicholson
The following article explains how you can utilise Wire Colour / Gauge Labels. Wire colour / gauge label information is held within a text file with an extension of *.WDW. The format of the file is “<layer name>””;””<wire colour /size>”. The wire colour/ size can be any order.
To add all of the different wire size / colour combinations may take some time especially if you have a lot of wire size/colour options. Ideally, your company standard wire types should already be defined in the template drawing (*.DWT) and this can be reused to create the *.WDW file.
Note: A Layer Name shouldn’t ideally have a space in the wire layer name nor any control characters such as:
“<” “>” “?” “|” “\” “/” “,” “.” “’” “=”

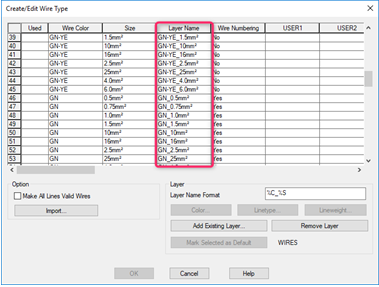

To copy all of the wire types, select the command Create/Edit Wire Type
Highlight the first Layer Name row and the last Layer Name row whilst holding Shift down to select all wire layers. Right click > Copy
Open a blank workbook in Excel.

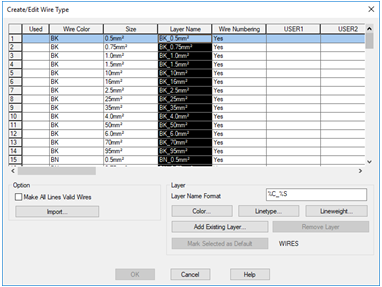

In the first cell, right click > Paste
In the above example, the required colour and gauge labels are similar to the Layer Name value.
Copy column A and paste to create a duplicated column B.
Highlight column B and use Replace to remove the “_” character and replace with a “ “. If you wish to have the colour and size split across 2 lines, use the “|” character instead.
Save the file as a CSV (UTF-8) format file (this is required if you have used the “²” character).
Open the resultant CSV using Notepad.
Use Find & Replace to replace the “,” with “;”
Select File > Save As >
The file must be saved with the extension of *.wdw. It must be located within one of your Support directories or project directory.
If you do use the “²” character, you should use a font style that supports Unicode characters e.g. Arial for it to be displayed correctly within your drawings.
