by Miles Nicholson

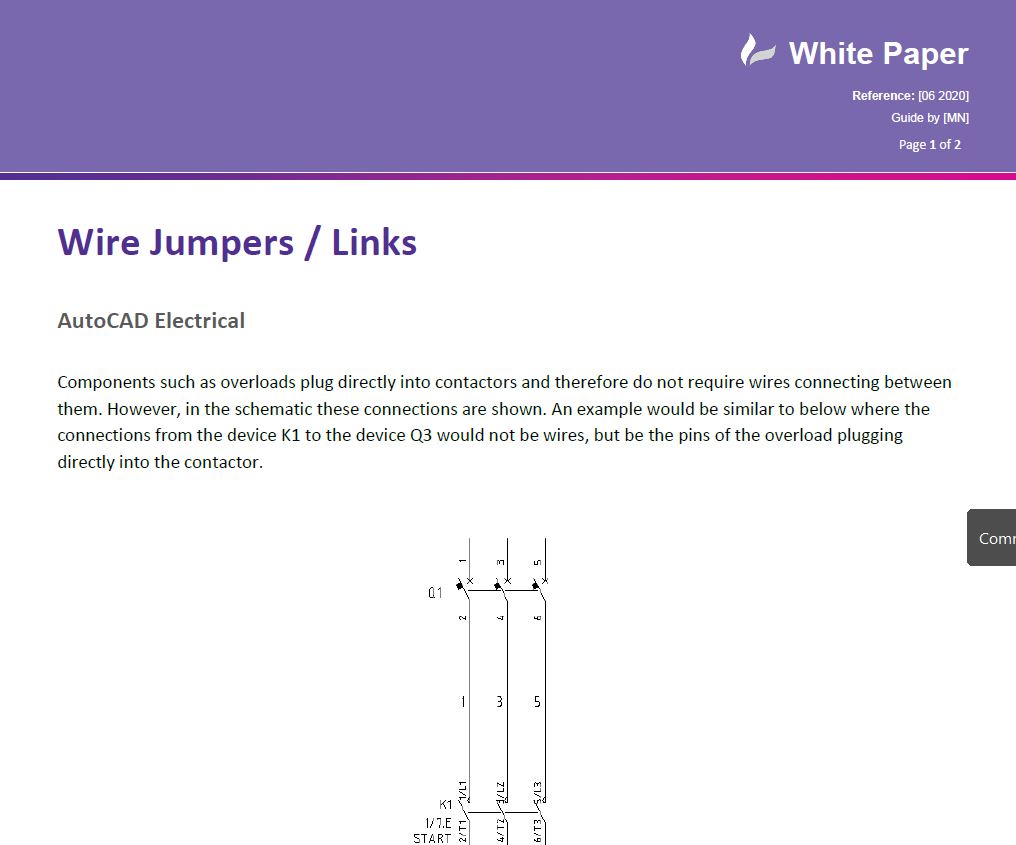

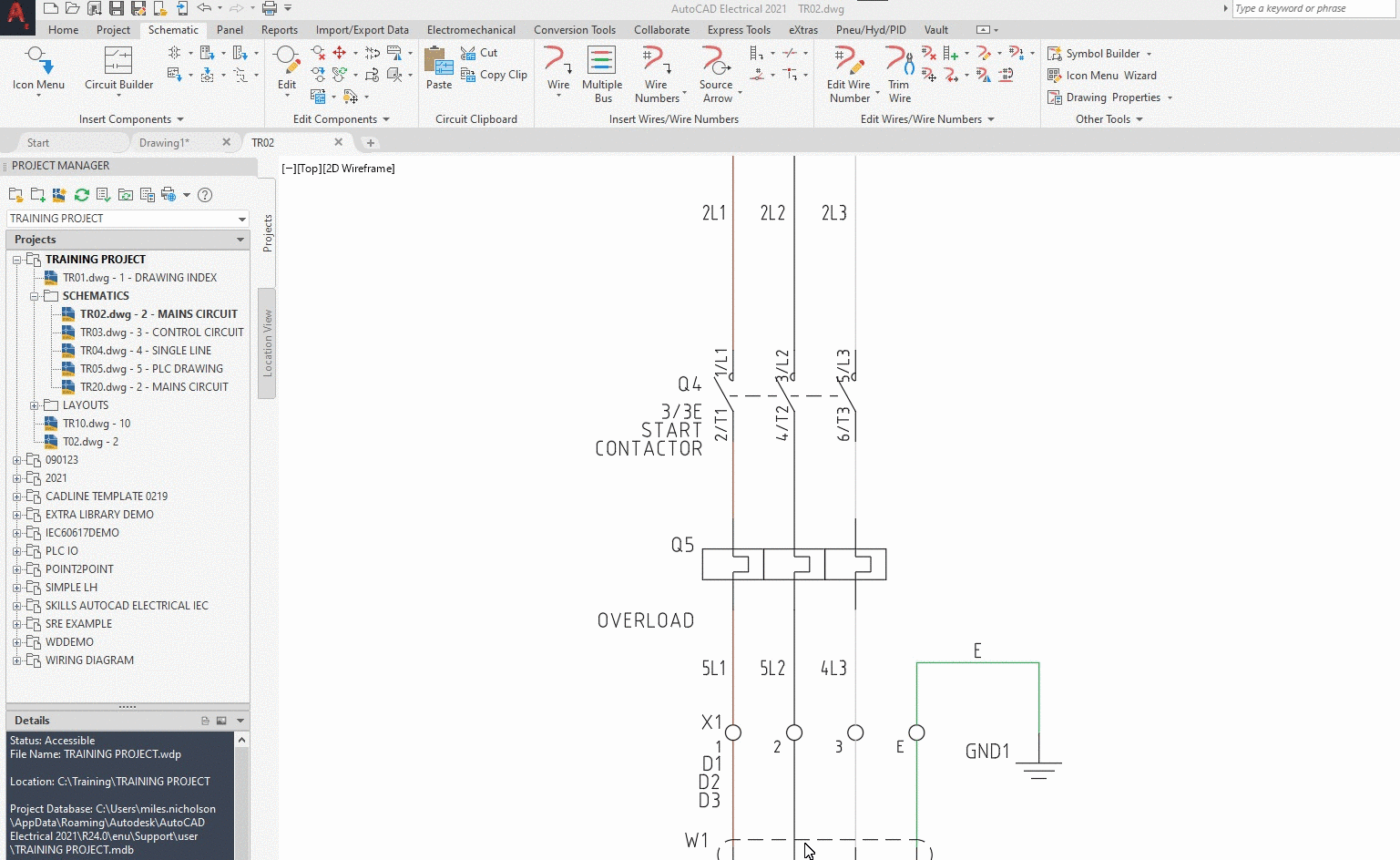

This following explains how you can create wire jumpers or links that connect between two or more components but are not shown in the wire from/to list. Notable examples would be where an overload plugs directly into a contactor or where a set of terminals have a comb bridge connection. In addition to reviewing the following article, you should also review which is a separate function:
Internal Jumpers Within A Component
