by Florentina Stirbu
To create an assembly component sketch driven pattern, a sketch driven pattern must exist as a feature in a part:

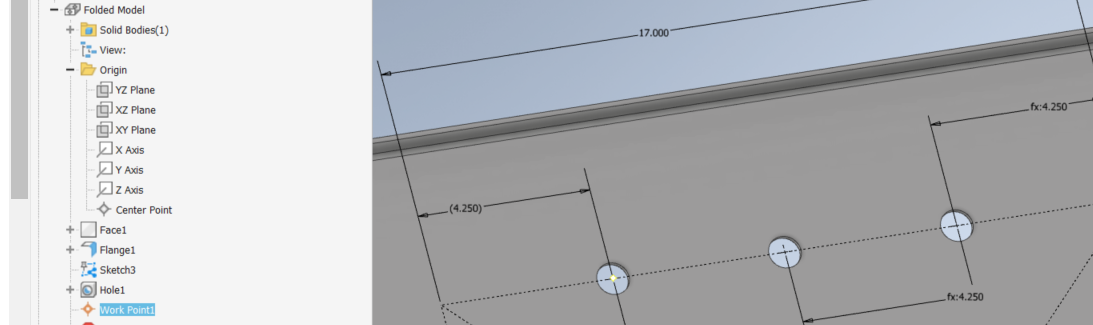

- With the part open/ active to edit in place, create a work point:

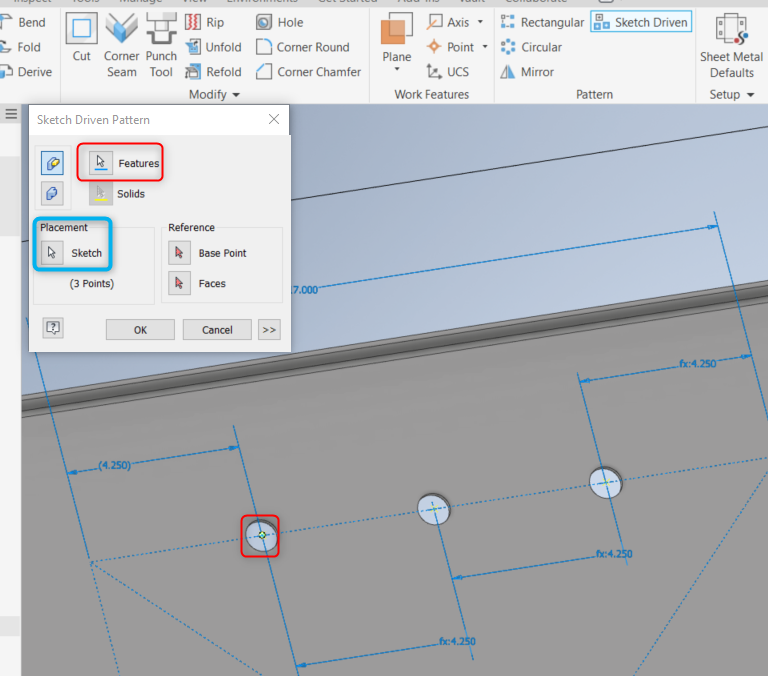

2. Create a sketch driven pattern with the work point as the feature and the sketch that is to be used for the pattern as the placement selection:

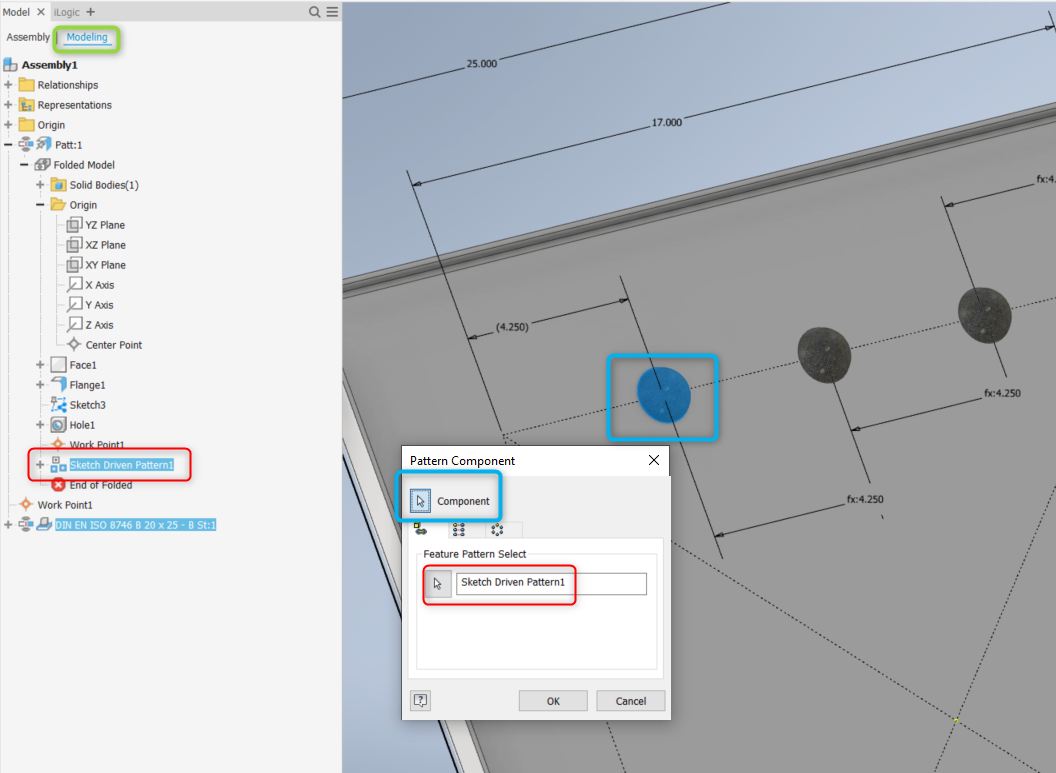

3. Within the top-level assembly, pattern the component. For the feature pattern, select the sketch driven pattern created at step 2 from the modelling browser:
