By Garry Stockton

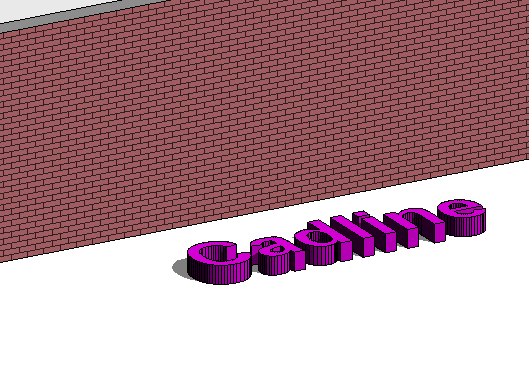

Creating a wall with a face (brickwork, facades, cladding) that usually runs horizontally or vertically,
can be re-designed to run diagonally using the ‘Rotate Tool’ in the modify panel.

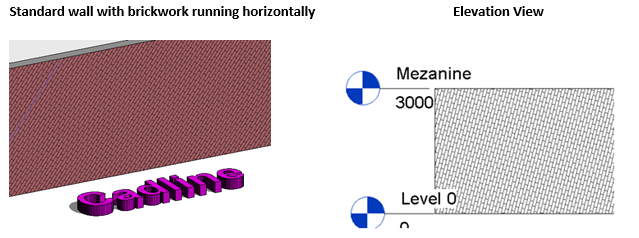

Standard wall with brickwork running horizontally
- Hover your mouse of a wall (3D or Elevation), do not select the wall.
- Press the TAB key twice and a blue horizontal line will appear across the face of the wall
- Left click on mouse button
- In modify panel, select rotate and change the angle to show alignment required
