Displace Elements and Tag in 2D Views
In Revit 2018 we got the “Displace Elements” features in 3D views. This feature allowed users to create “Exploded Axonometric” type views.

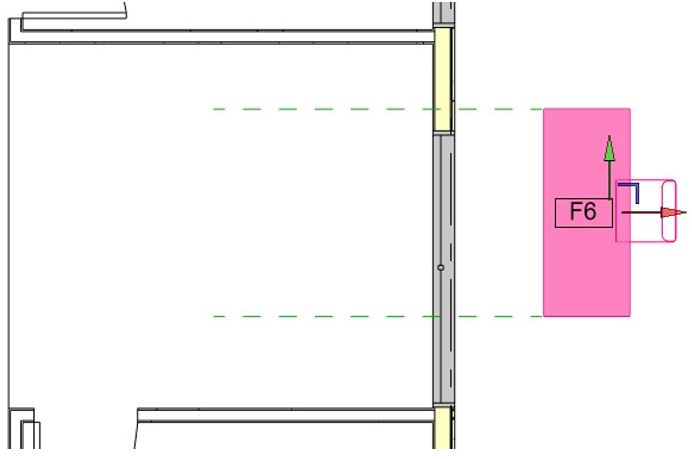

In Revit 2023, it is now possible to use this tool in 2D views.
It’s hard to think of an obvious use of this feature in 2D views, but it might be helpful for MEP installations.
Note: You can tag displaced elements in 2D and 3D views.
