By Garry Stockton
Rotate tiles on a floor, ceiling or other surface to reflect your design intent.
Place the cursor on the model pattern and simply press TAB to highlight a shape handle (do not select it, it won’t work).
- The status bar indicates if you have selected the shape pattern.
- Click to select the pattern/handle.

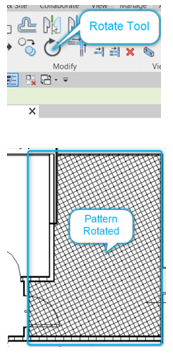

- Once selected, Click Modify | <element> tab Modify panel Rotate.
- Rotate the pattern.

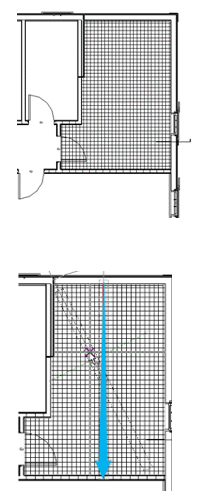

Floor pattern after rotation.
Please note: Some elements, such as ramps, do not allow model pattern rotation.
