By Dennis Collin

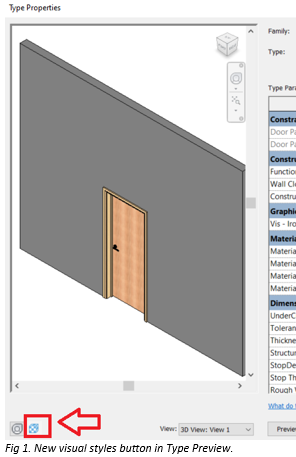

With the Revit 2024.1 release some additional UI tweaks are apparent. The first is that the Type Preview now supports visual styles so that users can better visualise how an element will display in the model. An additional button (marked) can be accessed to adjust the visual style of the preview.

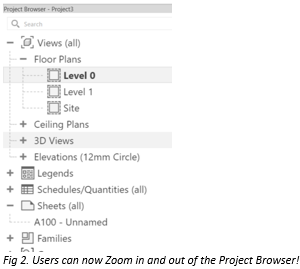

Another improvement is the ability to Zoom into the project browser by using a combination of the CTRL Key and the mouse scroll wheel. This is the same function as the ability to zoom into schedule views released a few versions ago.

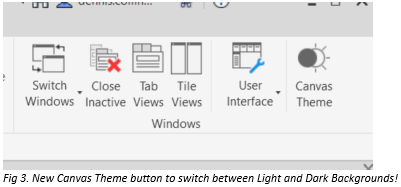

Another new feature is the introduction of the Canvas Theme toggle icon.
Clicking on this toggle switches between a light and dark drawing background which is a much quicker way of switching interface appearance than configuring Revit’s options menu.
