By Anite Ramgi
You have exported the results for a stress analysis to a report in html format, and sent the report to a customer.

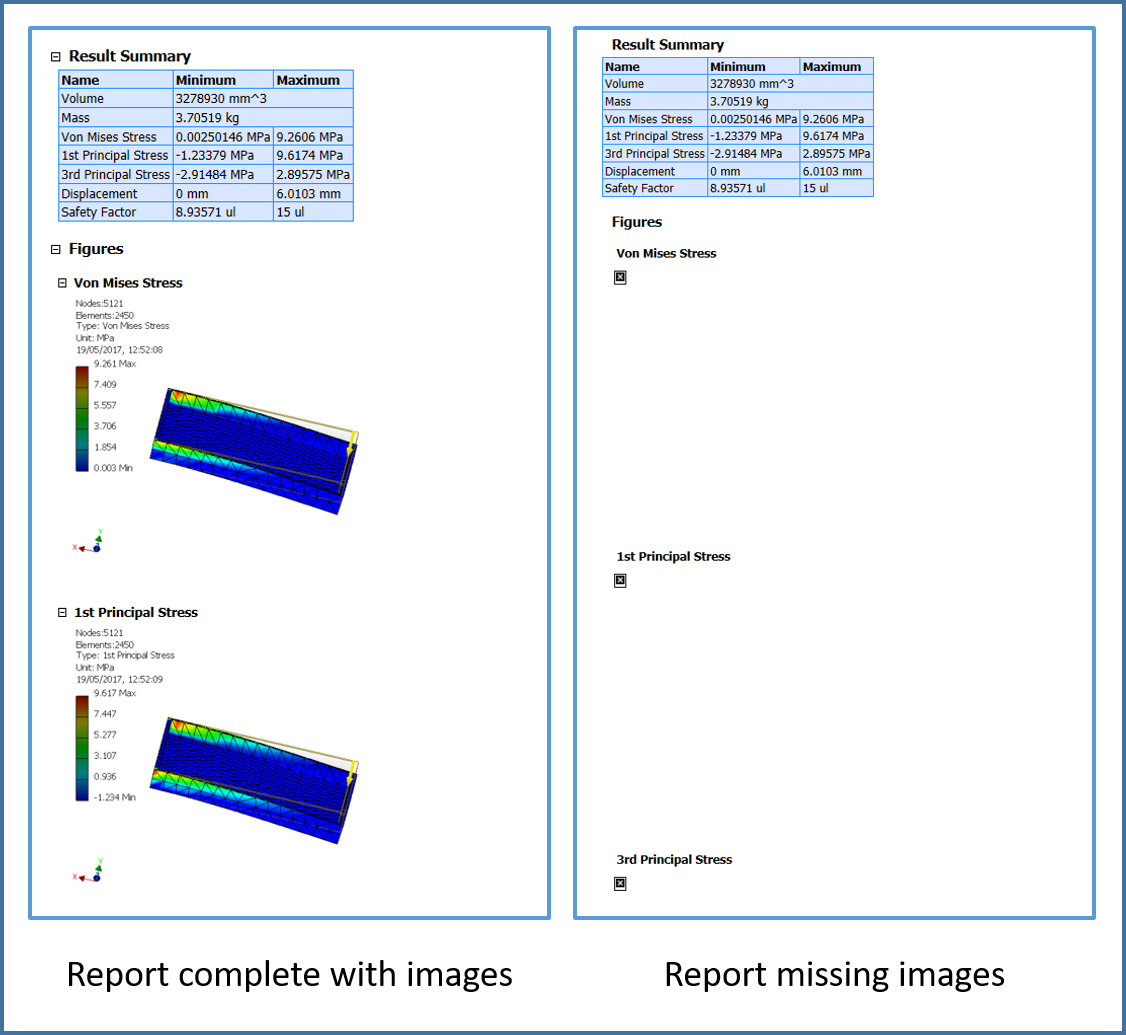

The customer can view the numerical results, however the images are not shown.
You also get the same issue when you have moved the report from its original location.
This issue occurs because the link between the report and its associated images is broken.

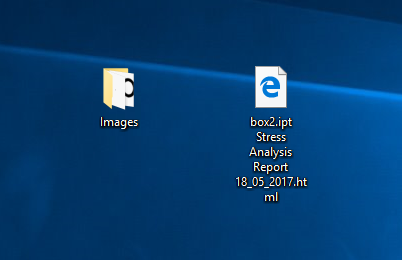

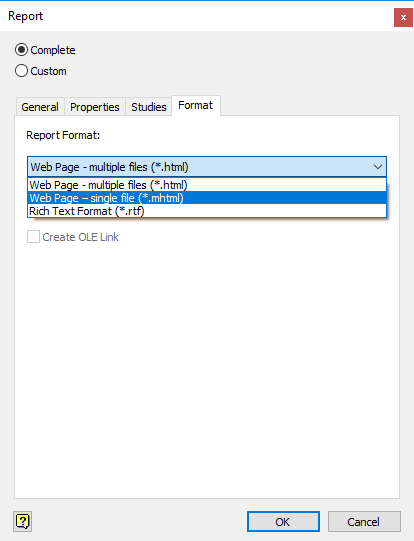

When you generate a report, there are two parts created, a report and its associated images. The images are saved in a folder called Images. Moving either parts of the report causes the link to break.As an alternative, you can save the report in different format, as either a .mhtml file or .rtf file. Both formats embed the images into the report. You could also print the report to a PDF.
