By Anite Ramgi
You may have created a drawing view which is lined, but you would like to have a combination of lined and shaded views. You can achieve this by following the steps below.

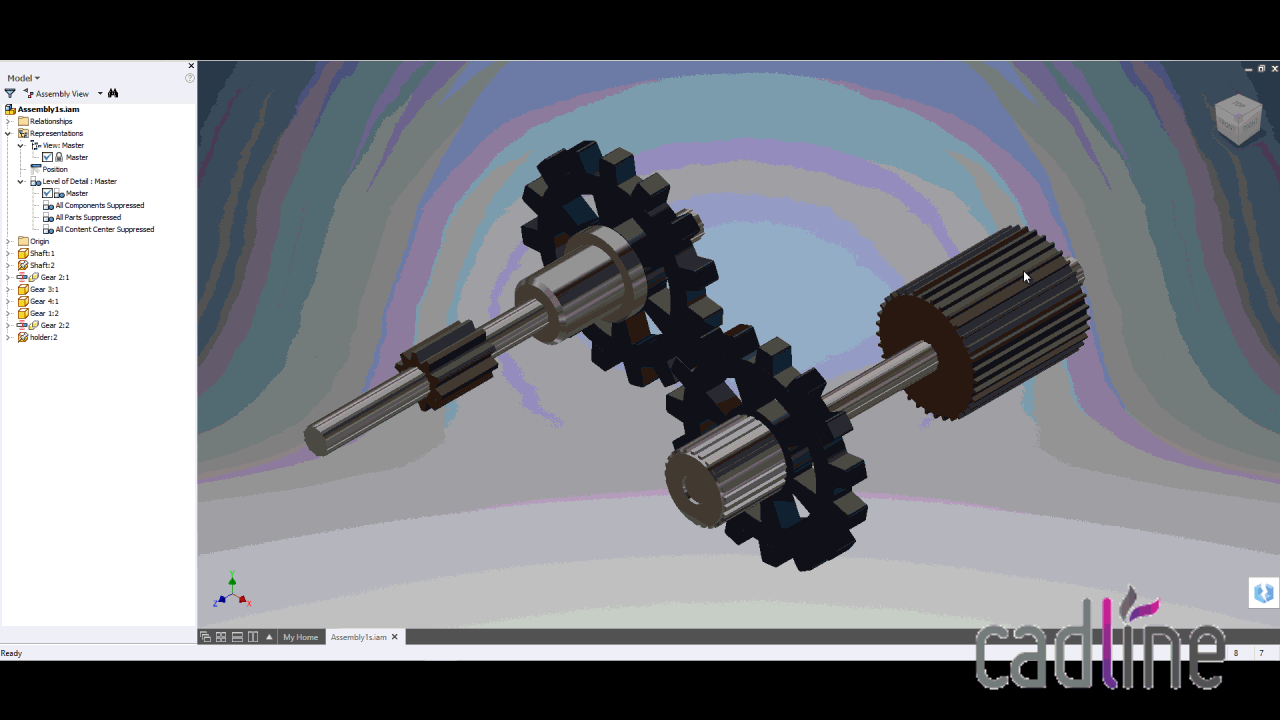

Open the assembly and isolate the part that needs be shaded in the drawing mode. Create a new View Representation and Position Representation from the Model Browser.

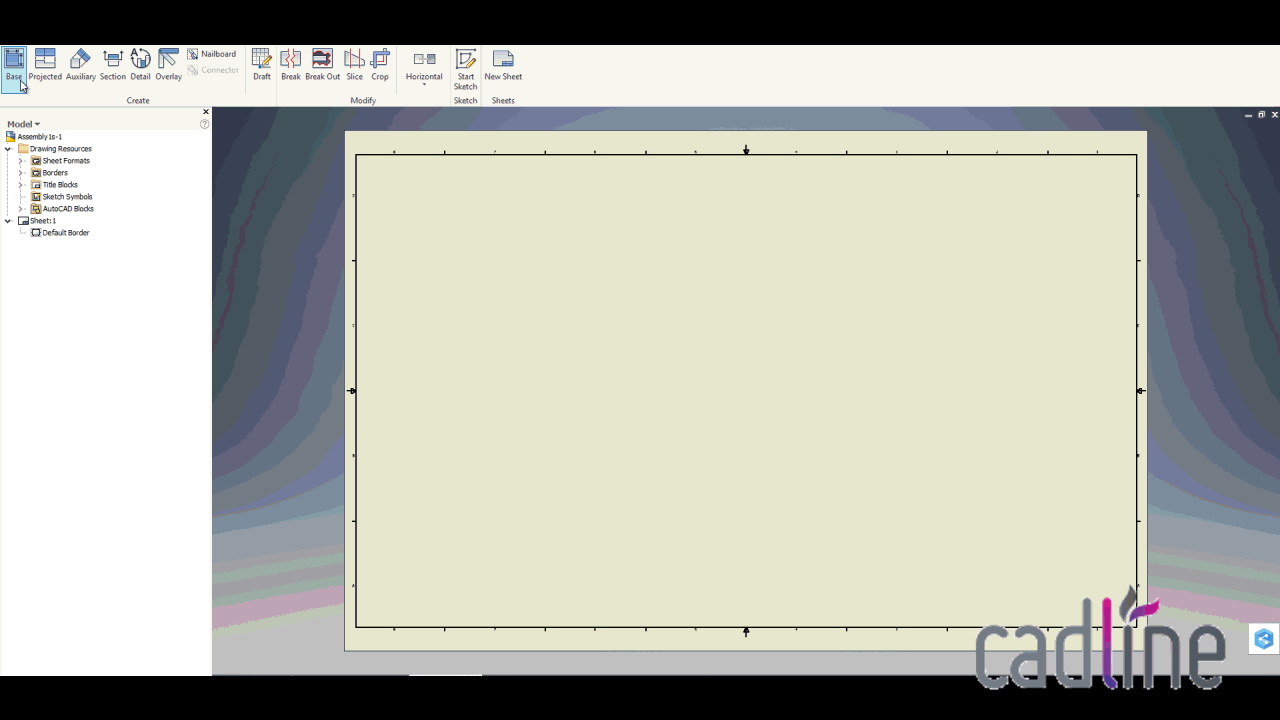

On drawing mode, select the Base View and place the view onto the sheet. Using the Overlay view, click on the original base view and then choose new View Representation from the pop-up window.
Press the button the Shaded for the shaded effect.
