By Miles Nicholson

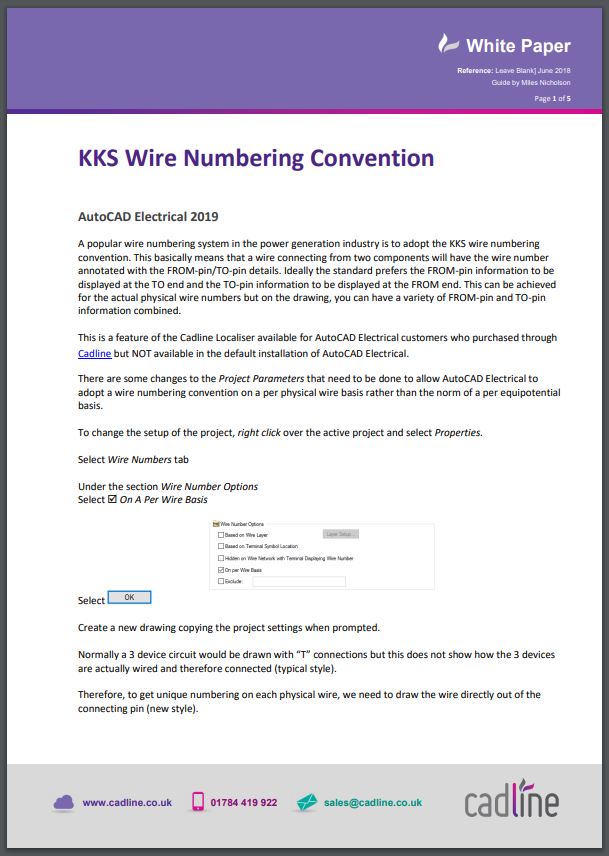

A popular wire numbering system in the power generation industry is to adopt the KKS wire numbering convention.
This basically means that a wire connecting from two components will have the wire number annotated with the FROM‐pin/TO‐pin details.
Ideally the standard prefers the FROM-pin information to be displayed at the TO end and the TO-pin information to be displayed at the FROM end. This can be achieved for the actual physical wire numbers but on the drawing, you can have a variety of FROM-pin and TO-pin information combined.

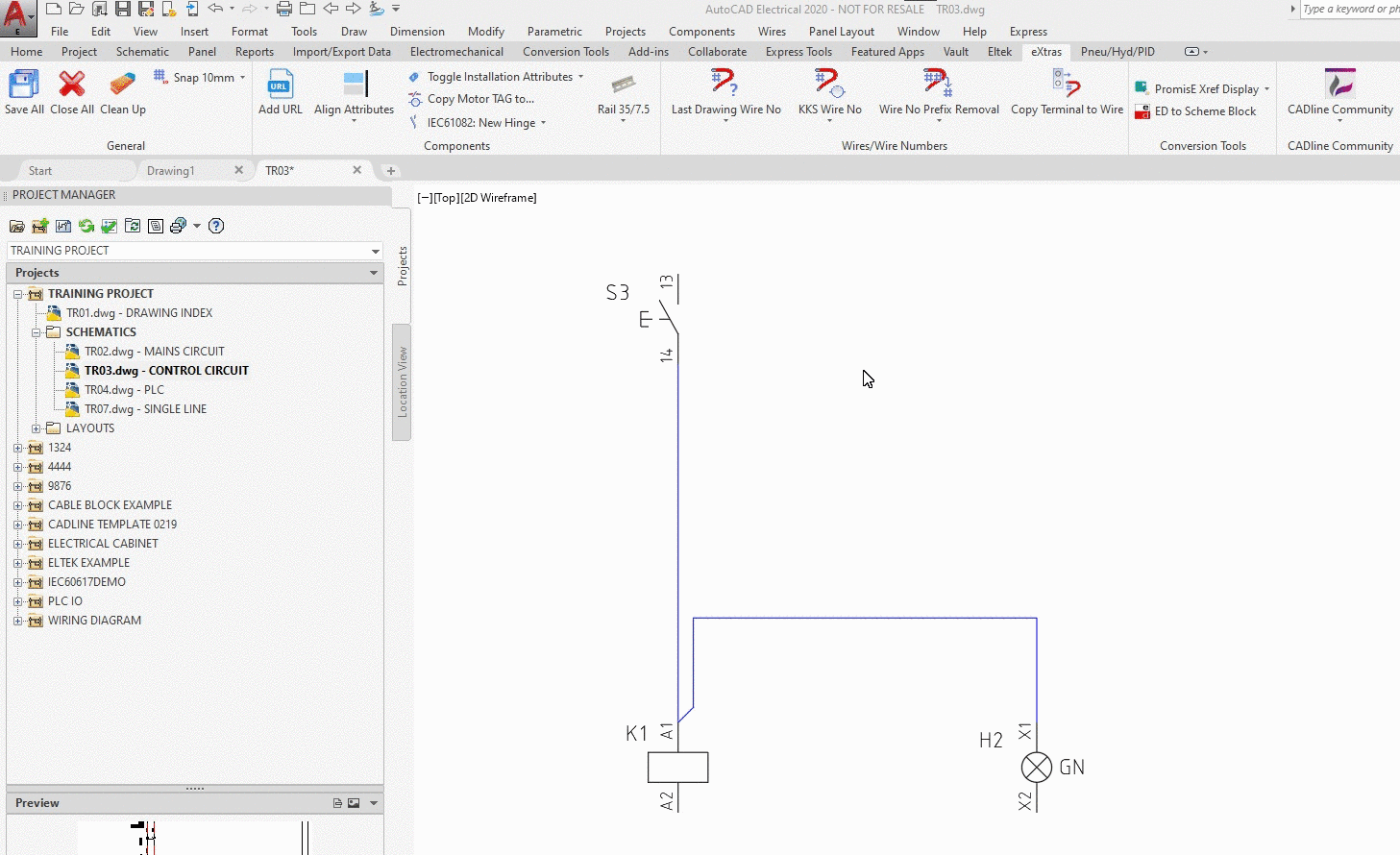

This is a feature of the Cadline Localiser available for AutoCAD Electrical customers who purchased through Cadline but NOT available in the default installation of AutoCAD Electrical.
