There are many ways to generate a Toposurface, both inside and outside of Revit. Using PointSense for Revit, there is now a way to create a surface directly from geometry generated from the point cloud data. The below guide shows how this can be done.

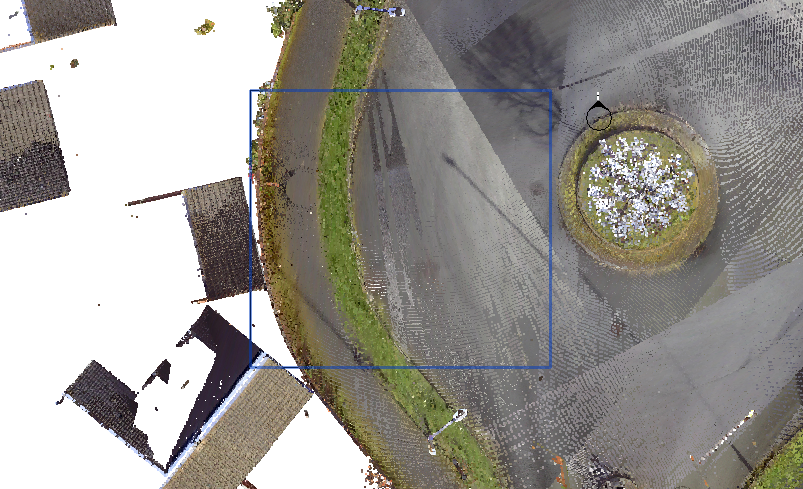

The first step is to create a floor in the area needed:

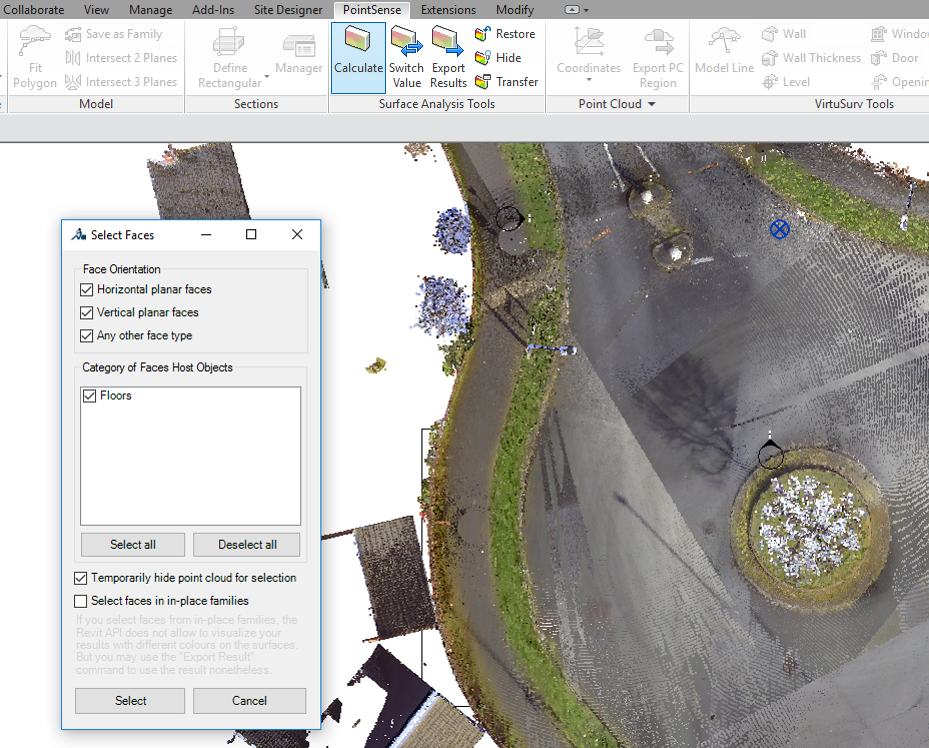

Then go to the PointSense tab>Surface Analysis Tools, and select Calculate. Then select the face to compare with the point cloud, and click Finish:

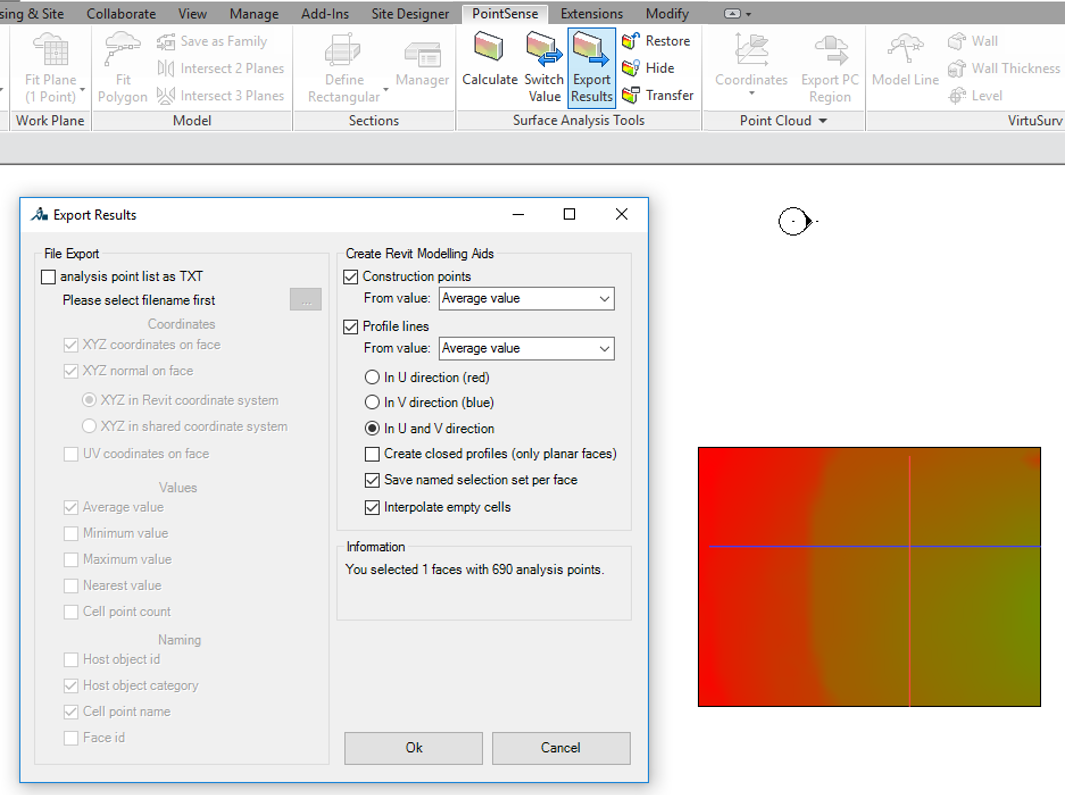

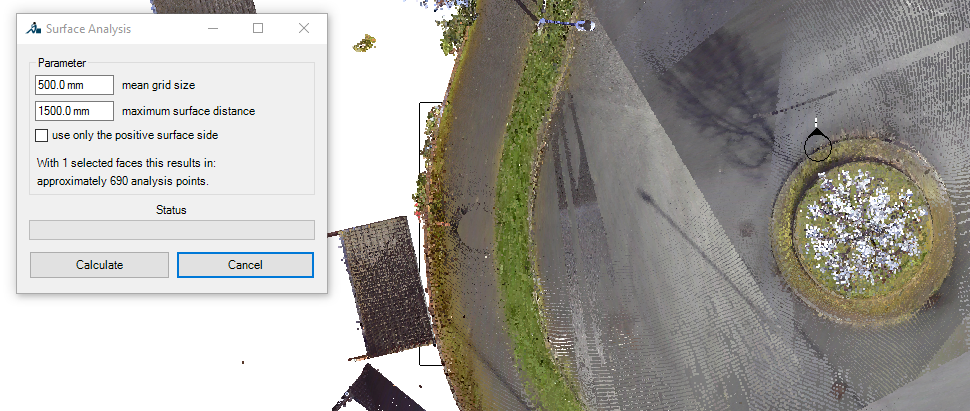

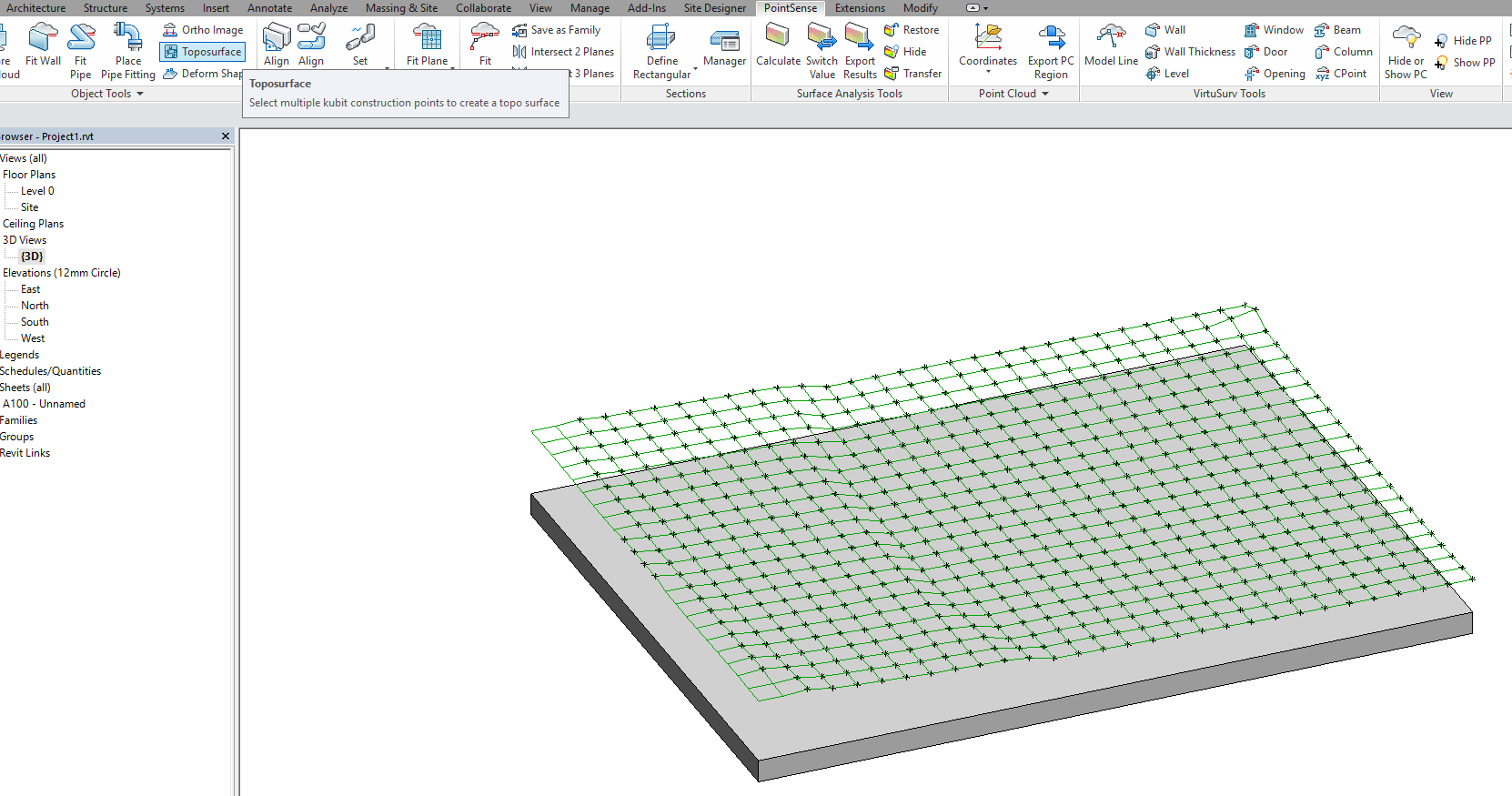

Next specify the parameters for the Analysis. I would suggest to keep this well under 1000 points:This will give you the Analysis results on the Floor. Next step is to export them, you could export this to a TXT file, but in this example we are going to physically create geometry for the surface, so tick Construction points or profile lines:We now have constructions points or profile lines that we can create our Toposurface from. Simply go to the PointSense tab>Object Tools Panel>Toposurface, then just select the model elements and finish:This gives us a Toposurface:
