By Anite Ramgi

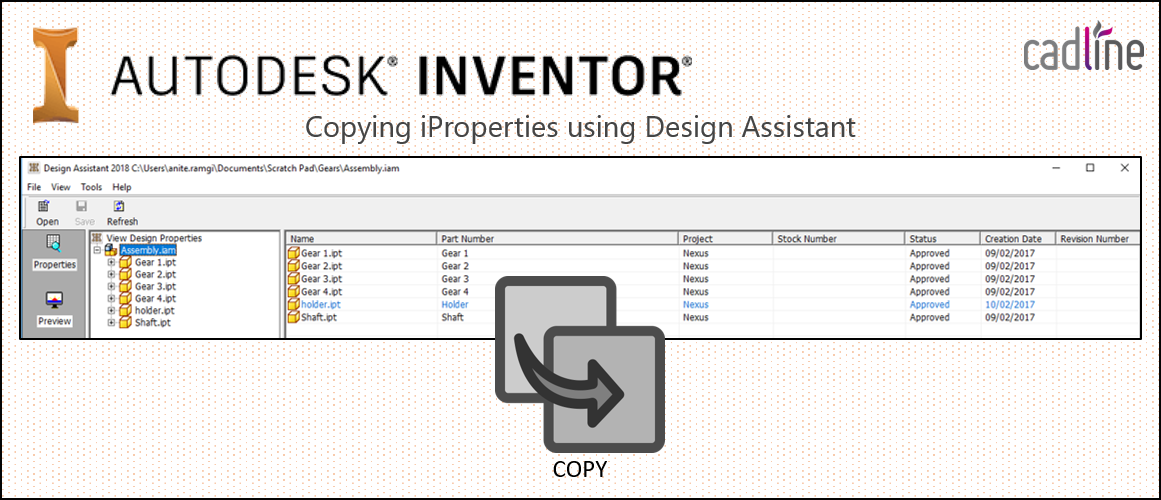

You can copy iProperties from an assembly to parts efficiently using the Design Assistant.

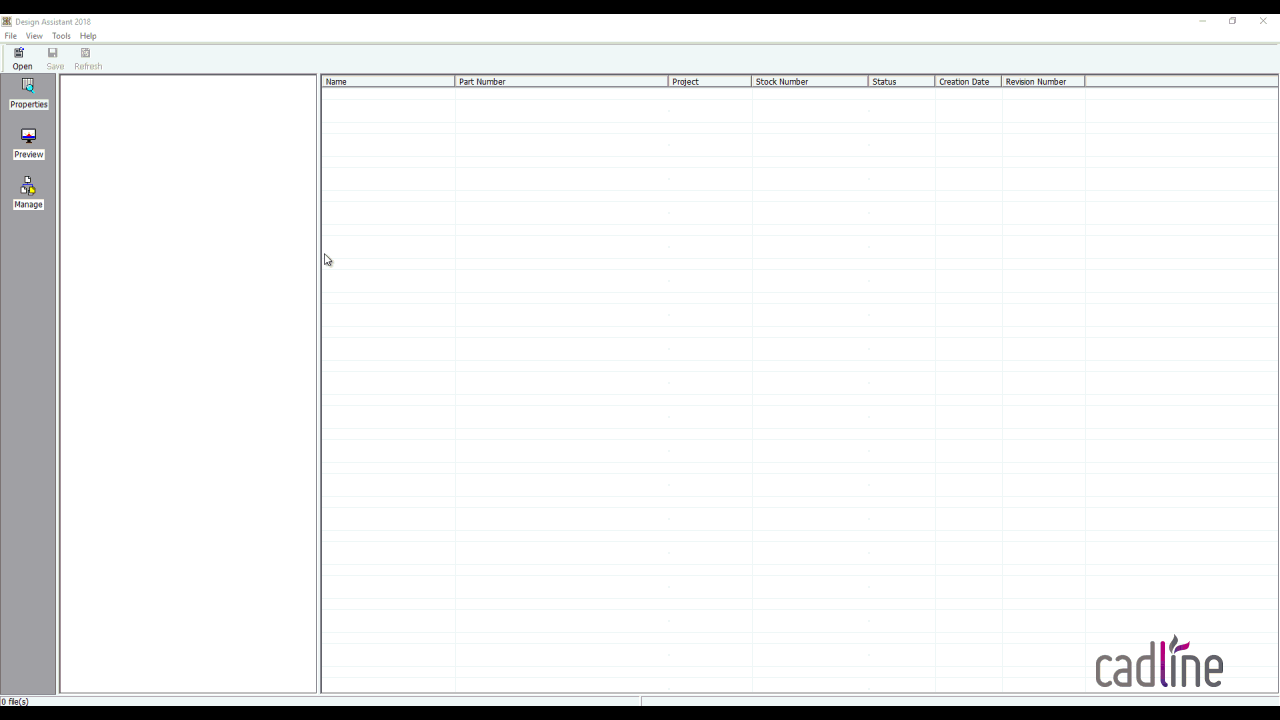

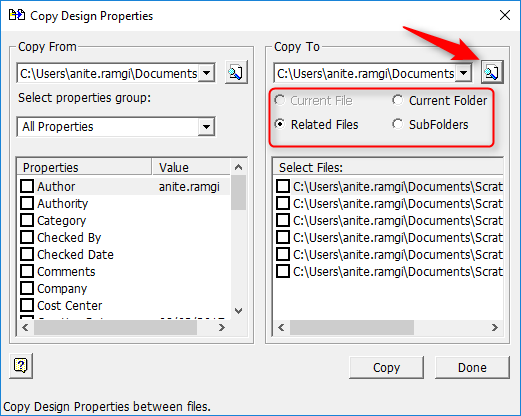

Open the assembly> right click on the assembly file and select copy design properties> tick properties you want copy over> tick the files you want to copy> copy.You can also apply properties to parts which are not part of the assembly by browsing to the file you want and clicking the relevant radio boxes.
