By Miles Nicholson
The Flip Wire Number command moves a selected wire number to the same position on the other side of the wire. This also works for wire colour/gauge labels where the wire colour/gauge label is aligned to the wire.

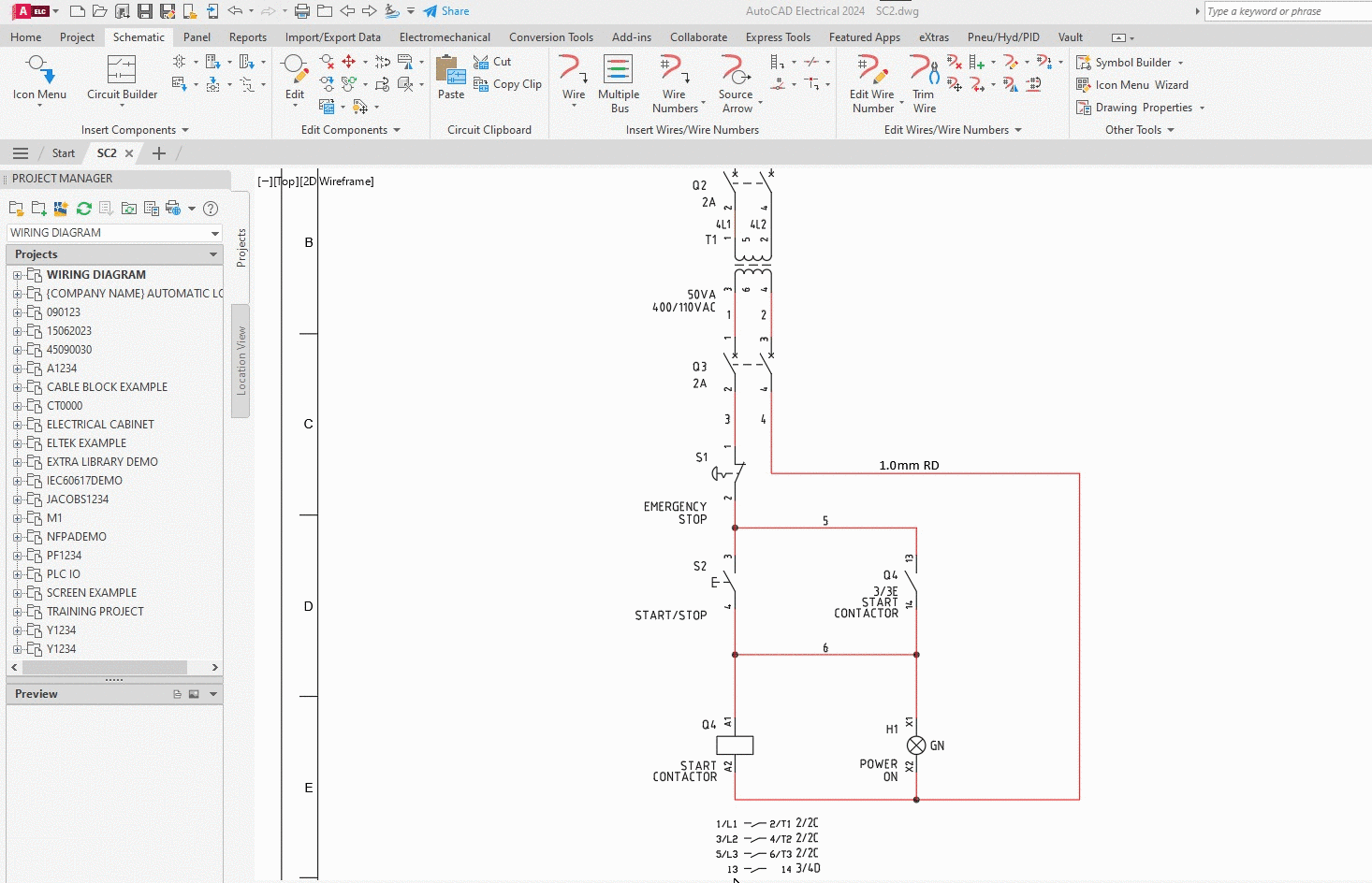

Select Schematic ribbon tab > Edit Wires/Wire Numbers pane > Flip Wire Number
Select each wire number to flip.

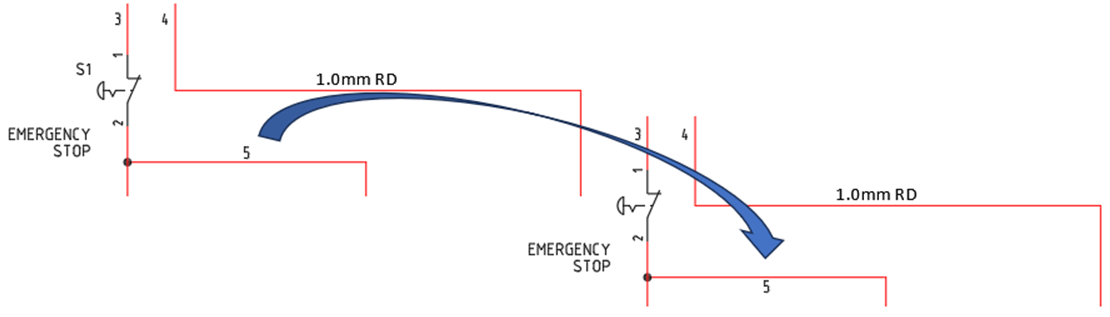

Each wire number or wire colour/gauge label selected is mirrored across its associated wire.
If a wire colour/gauge label has used the “|” symbol where the text is split across 2 lines, the whole text is flipped either above or below the wire.
