By Dennis Collin
When conducting training courses on AutoCAD I frequently get asked is there a checklist of items to include in an AutoCAD template file? A well-prepared template is so much more than just a title sheet. I have therefore, compiled a list of things that certainly should be considered. Indeed, these items are discussed on both our Essential and follow on AutoCAD courses.
Typical elements to consider for a good AutoCAD template are:
- Units & Precision
- System variable monitor enabled and configured
- Annotation Scale List
- Layers
- Linetypes
- Lineweights
- Layer Filters
- Layer States
- Text Styles
- Dimension Styles
- Multi-leader Styles
- Table Styles
- Title sheet (with attributes and possibly dynamic properties)
- Page setups
- Local blocks added
- Cadstandards checker configured and enabled
- Any superfluous information purged to encourage use of company standards and minimise file size.

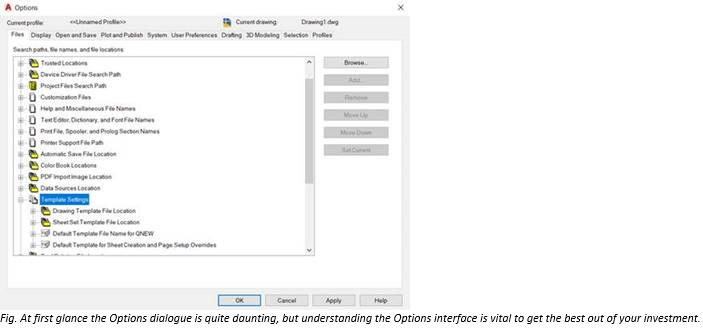

- If working in a network environment the template file should be stored on a shared server which the entire team can access.
Other areas to consider:
- Share well-constructed block libraries via the network and accessed via tool or block palettes
- Share Bespoke plot configuration files (CTB/STB) on the server
- Share Bespoke plotter driver configuration files on the server
- Configure Designcentre to reference drawings and restore default settings if deleted or purged
- Configure AutoCAD to load in any useful timesaving routines with the Appload utility (full AutoCAD only)
- Setup a default AutoCAD profile to restore settings in the event of a workstation failure (full AutoCAD only)
- Write a well-constructed CAD standard manual, shared on the server
- Ensure your staff are well trained, so that they can use and appreciate all the benefits of a well-constructed AutoCAD environment, thereby being productive and profitable.
