Introduction
When working with Autodesk Inventor’s sheet metal environment, one of the crucial parameters that significantly affects the accuracy of your designs is the K factor. This blog post will dive into what the K factor is, why it's important, and how to utilise it effectively in your Autodesk Inventor projects.
What is the K Factor?
In sheet metal design, the K factor is a critical value that influences how the software calculates the bending allowance during the fabrication process. Essentially, the K factor is a ratio that represents the location of the neutral axis (the axis at which the material neither compresses nor stretches during bending) relative to the thickness of the sheet metal.
Why is the K Factor Important?
The positioning of the neutral axis varies depending on the material properties and the bending operation. Since the K factor influences the flat pattern dimensions of the sheet metal part, getting this number right is pivotal. An incorrect K factor can lead to inaccuracies in the fabricated parts, potentially leading to issues with assembly or the part not meeting its intended design requirements.
How is the K Factor Calculated?
The K factor is calculated as a ratio of the distance from the inside face of the bend to the neutral axis over the thickness of the sheet metal:
K = Tn/T
where Tn is the distance from the inside face to the neutral axis, and T is the total thickness of the sheet metal.
In Autodesk Inventor, you can either input a specific K factor based on your knowledge of the material and bending process or rely on standard industry values as a starting point. It’s often recommended to conduct physical tests on sample materials and bends to determine the most accurate K factor for a particular setup.
Setting the K Factor in Autodesk Inventor
To set or adjust the K factor in Autodesk Inventor, follow these steps:
- Open your sheet metal file.
- Go to the "Sheet Metal Defaults" in the browser or through the ribbon.

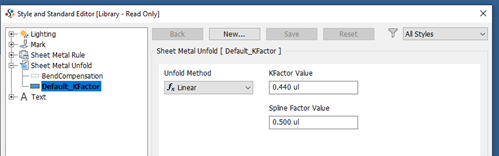

- In the dialog box, select the edit button (pencil) next to the Unfold Rule box.
- Here, you can enter your desired K factor value under the ‘Sheet Metal Unfold’ settings and save new default values for materials and processes once those calculations and verifications have been completed.
Best Practices
Experimentation: Since materials and bending processes can vary greatly, experimenting with different K factors to find the one that best suits your specific scenario is advisable. K factor can vary from machine to machine and process to process, so experimentation can help ensure the correct outcome from the CAD data to physical components.
Documentation: Always document the K factors used for different materials and setups in your design files. This helps in maintaining consistency and quality in manufacturing processes and can speed up time to market for new designs, minimising the need for additional experimentation.
Collaboration: Communicate with your fabrication team to understand their experiences and adjustments they might recommend based on their equipment and techniques. As designers we tend to focus on the virtual and overlook the wealth of information and skill that comes with fabrication experience.
Conclusion
The K factor is a small detail with a huge impact in the realm of sheet metal design using Autodesk Inventor. Understanding and accurately setting this parameter can be the difference between a successful project and one that faces setbacks in fabrication. By paying close attention to this aspect, designers can ensure precision and efficiency in their sheet metal fabrication projects.
Whether you are a seasoned engineer or a newcomer to sheet metal design, mastering the use of the K factor in Autodesk Inventor will enhance your ability to create accurate and functional designs, improving time to market and reducing rework and eliminating unnecessary material and resource waste.
