By Miles Nicholson

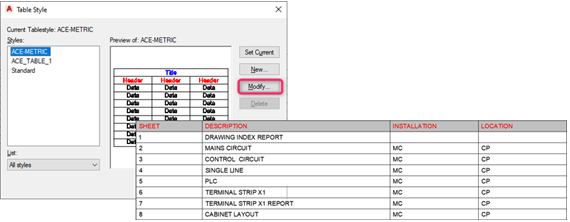

It’s easy to customise the style of the reports into drawings. When you run a report, you can insert the report into a drawing or several drawings. The report information is annotated into an object linked table meaning that it will update if the data within your project changes. The table style used is defined within the report dialogue and can be modified either within the specific drawing or within the “master” table style drawing. If the changes are made within the “master” TableStyle.dwg, all new reports will adopt the styling defined.
