by Garry Stockton

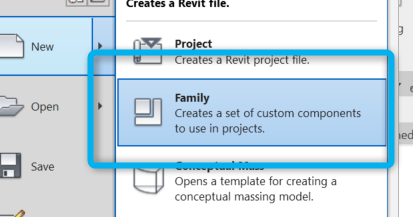

Create a family in the Family Editor. Select Metric Generic Model.
Once the Family template is open, click Insert tab Import panel (Import CAD).

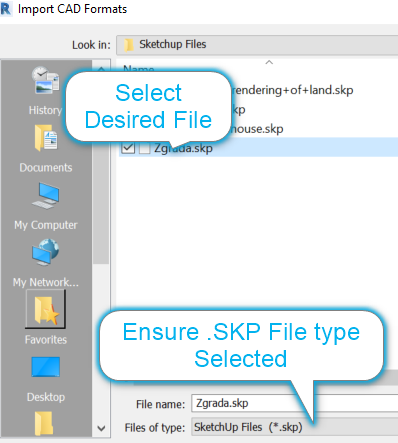

In the Import CAD Formats dialog, navigate to the folder that contains the SKP file.
Specify the desired import settings.
The following settings are recommended:
- Colours: Preserve
- Layers: All
- Import Units: Auto-Detect
- Positioning: Auto - Origin to Origin
- Place at: Level 1 or Ref. Level
- Orient to View

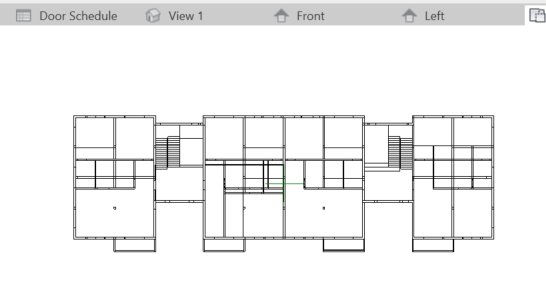

Click Open and place in desired location.

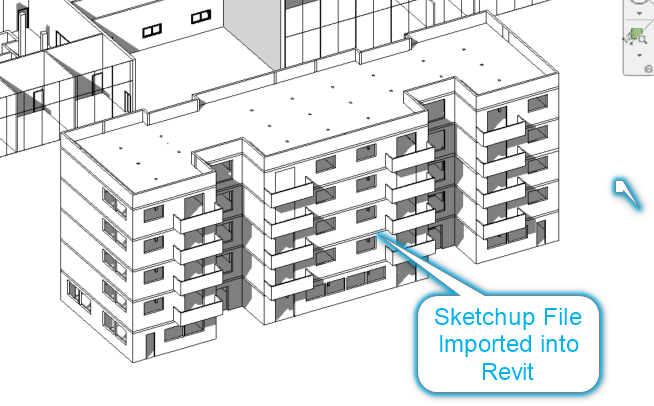

Once in your Revit Family save to your Workstation or Select ‘Load into Project’.
