by Garry Stockton
Did you know, before exporting a model to DWG or DXF, you can create or modify an export setup to meet your needs? Unless you change this, you will have American Institute of Architects Standards, therefore your exported layers within your DGW/DXF may not comply.
To change this, go the File tab, Export Options, Export Setups DWG/DXF.

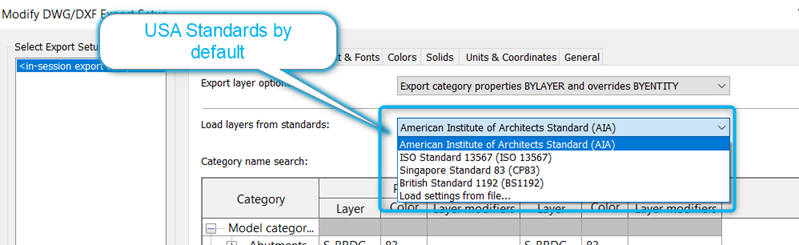

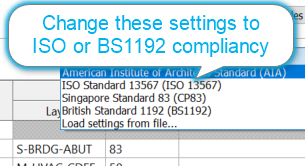

Select the existing USA standard, in the drop down you will now be able to choose your compliancy setting. However, you may have your own customised standards, these can be loaded by choosing ‘Load settings from file’.

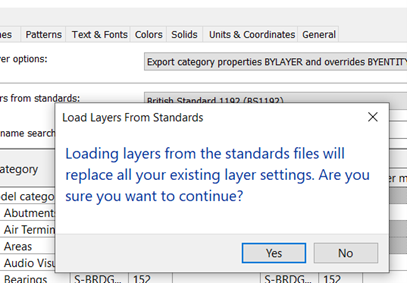

Once you have selected your layer standard, you will get the enclosed dialogue box, just tick Yes.
