By Miles Nicholson

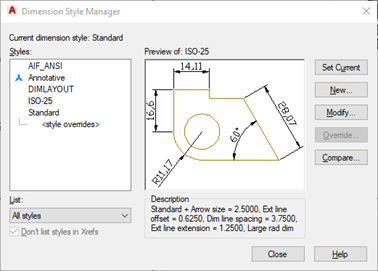

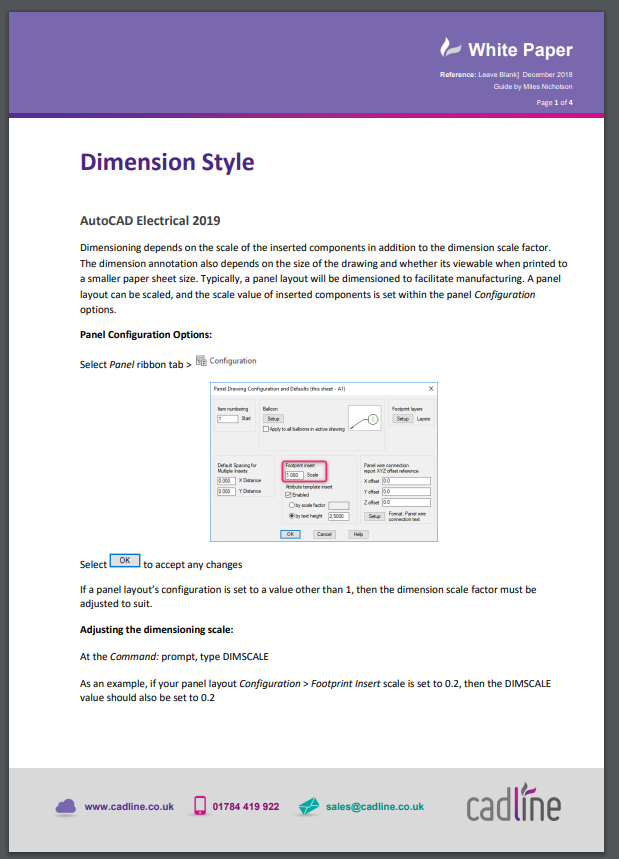

Dimensioning depends on the scale of the inserted components in addition to the dimension scale factor. The dimension annotation also depends on the size of the drawing and whether its viewable when printed to a smaller paper sheet size. Typically, a panel layout will be dimensioned to facilitate manufacturing. A panel layout can be scaled, and the scale value of inserted components is set within the panel Configuration options.
